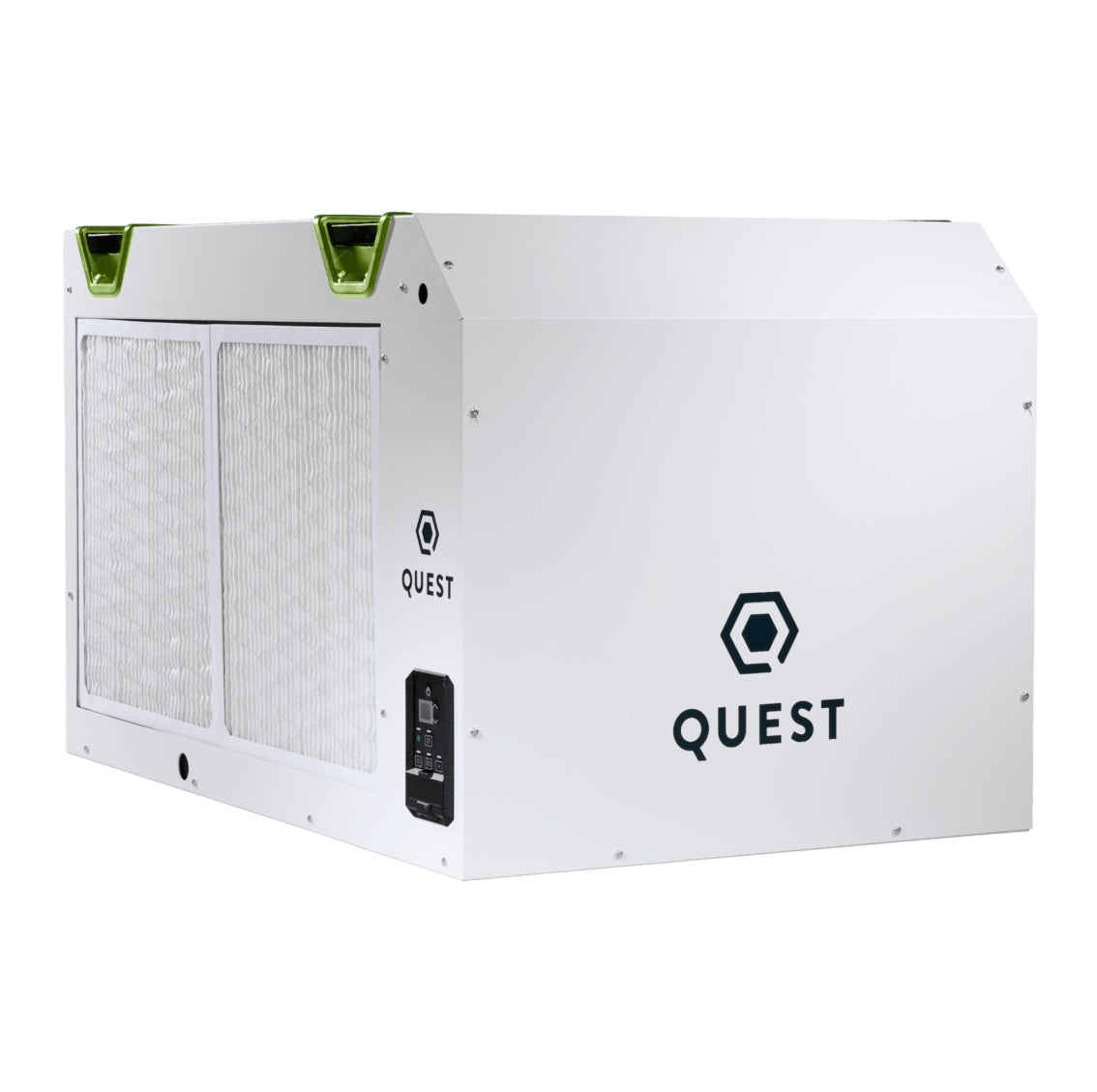

The Quest 506, available in 208/230V and 277V configurations, is the newest generation of the Quest “6-series,” surpassing the Quest 335 as the world’s most energy-efficient dehumidifier. It removes 500 pints per day at 9.2 pints per kWh. The 208/230V model offers flexible installation and lower amp draw to free up panel capacity, while the 277V model further reduces amperage and installs without buck-boost transformers or rewiring - streamlining setup and cutting costs.
The new generation of Quest 506 now features Quest’s onboard digital controls for easy set points, self-diagnostics, filter change notifications, and dark mode to limit light pollution. Additionally, this control panel features a low-voltage terminal block for use with a remote controller, ideal for overhead installations.
The Quest 506 now utilizes the environmentally friendly refrigerant R-454B. It boasts a significantly lower Global Warming Potential (GWP) compared to the previously used R-410A, and the common R-32 found in many competitor machines.
Quest 506 High Capacity Dehumidifier Features:
- Environmentally conscious refrigerant R454B
- Overhead or ground placement
- UL rated and ETL listed
- Long power cord
- Digital control interface
- MERV-13 filtration
- Integrated handles and hanging points
- 5 Year Warranty
Product Specifications:
- 208/230V
- Capacity 500 Pints/Day
- Efficiency 9.2 Pints/kWh
- Supply Voltage 208-230V
- Current Draw 9.9 Amps (230V) | 10.9 Amps (208V)
- Operating Range: 56°F Min - 95°F Max
- Dimensions: 44.8 in. L x 29 in. W x 27.4 in. H
- 277V
- Capacity 500 Pints/Day
- Efficiency 9.2 Pints/kWh
- Supply Voltage 277V
- Current Draw 8.2 Amps
- Operating Range: 56°F Min - 95°F Max
- Dimensions: 44.8 in. L x 28.9 in. W x 27.4 in. H
Additional Information:
Quest 506 208/230V Spec Sheet (PDF)
Quest 506 277V Spec Sheet (PDF)
Quest 506 High Capacity Dehumidifier Manual (PDF)
