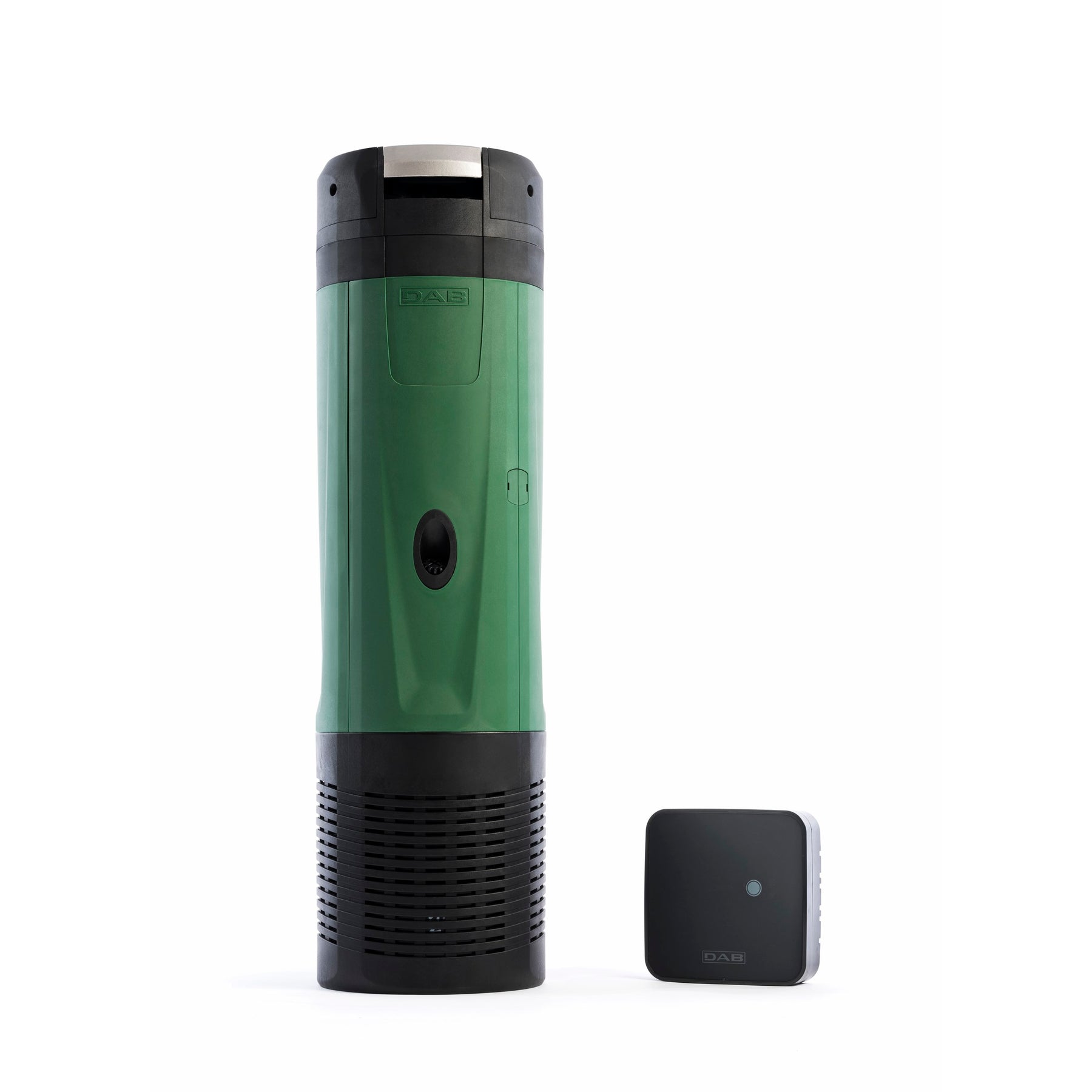

The DAB® ESYBOX Diver is a 7" multi-stage electronic pump equipped with a variable frequency drive, designed for clean water applications in rainwater tanks, wells, cisterns, or storage tanks. The pump offers versatile installation options, allowing it to be submerged, partially submerged, or used as a surface pump when paired with the DOC68 accessory (sold separately). Ideal for pressurization, rainwater reuse, gardening, and residential irrigation systems, the ESYBOX Diver automatically adjusts performance to match system demands, improving efficiency and reducing energy consumption. The pump features a built-in non-return valve, a stainless steel handle for easy transport, and can also be installed horizontally. Integrated PLC (PowerLine Communication) and Wi-Fi technology allow for advanced monitoring and control, while dry-run protection ensures safe operation. IP68 certified and can achieve the same protection as a surface pump when used with the DOC68 accessory.
ESYBox Diver Features:
- Inverter
- Integrated expansion tank
- Built-in non-return valve
- High-efficiency permanent magnet motor
- Dry-running protection
- Thermal protection
- Corrosion resistant body
- Stainless steel handle for transport
- Integrated PLC
- Wi-Fi connectivity
- Horizontal or vertical installation
Product Specifications:
- Power Input: Single Phase, 230V / 50-60 Hz
- Maximum Flow Rate: 31.7 gpm (7.2m³/h)
- Maximum Head: Up to: 180ft (55m)
- Free Passage: 0.08" (2mm)
- Minimum Suction Depth: 4.33" (110mm)
- Minimum Level of Water: 1.38" (35mm)
- Liquid Temperature Range: 32°F to 131°F
- Ambient Temperature Range: < 32°F to 122°F
- Maximum Immersion Depth: 49ft (15m)
- Adjustable Constant Pressure: 14 psi to 80 psi (pre-set 43psi)
- Outlet Connection: Threaded 1.25" NPT
- Pump Maximum Diameter: 185mm
- Impeller/s Material: Techno polymer / AISI 304 Stainless Steel
- Maximum Number of Starts: 60/h
- Protection Class: IP 68
- Non-Stop Service: Yes
- Motor Insulation Class: F
- Power Cable: 49 ft. with NEMA 6/15P plug
- Certifications: CSA C22.2, UL 778, NSF 61 & NSF 372 Certified
- Installation Type: Fixed, horizontal or vertical. Submerged or semi-submerged. It can be installed on the surface, under the water level, or outside in a vertical position with the DOC68 accessory (sold separately).
