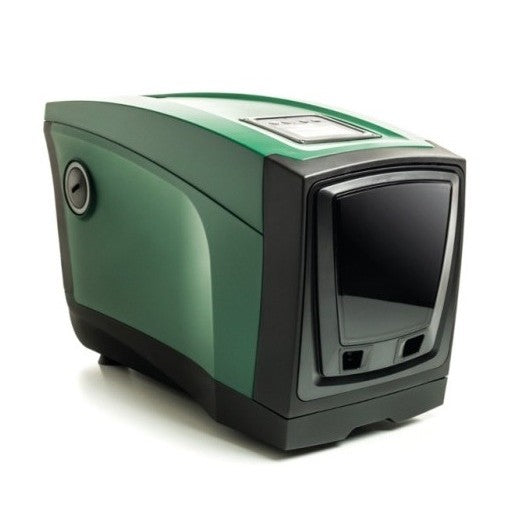

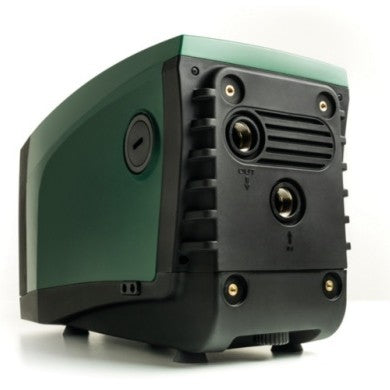

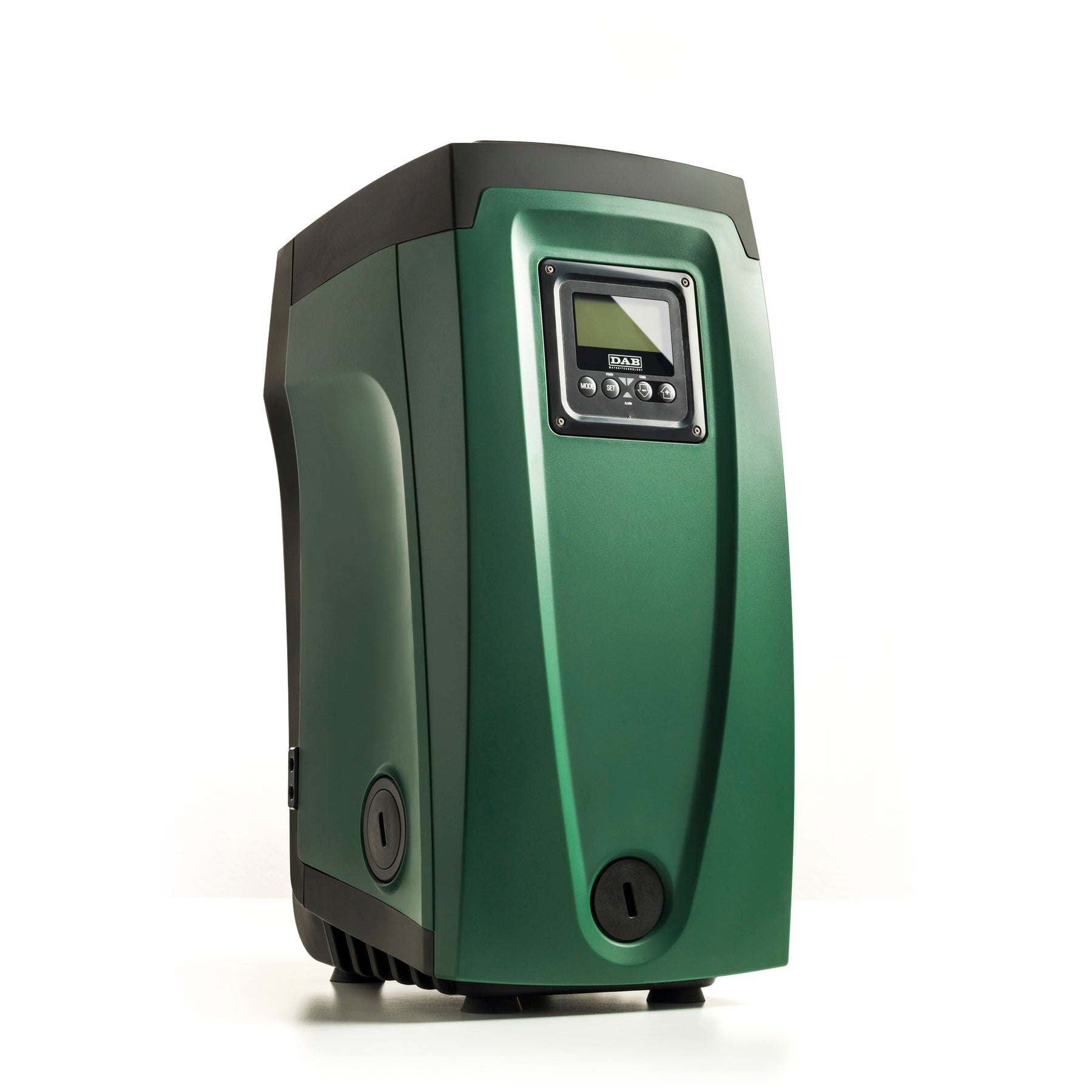

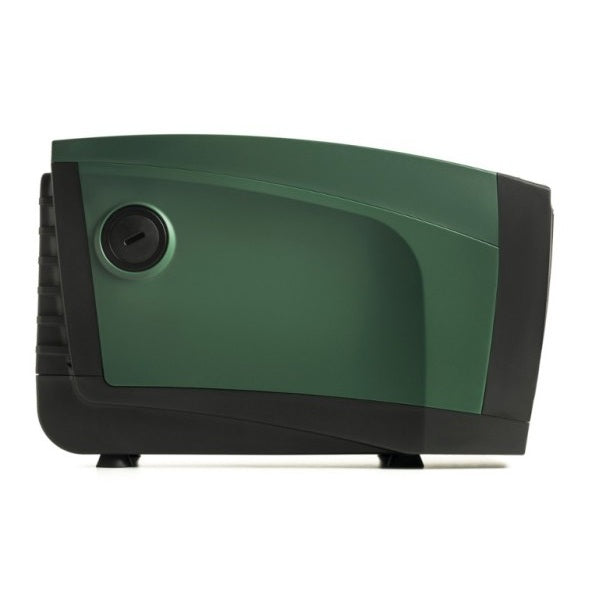

The DAB® ESYBOX is a compact, all-in-one pressurization system engineered for reliable domestic and residential water supply. Designed to simplify installation, it combines a high-efficiency self-priming multistage pump with inverter control, pressure and flow sensors, an integrated check valve, a 0.5-gallon expansion tank, and a high-resolution LCD display - all within one unit.
Thanks to its flexible design, the ESYBOX can be installed vertically or horizontally, making it ideal for tight spaces or areas with limited ventilation. Its water-cooled motor, sound-absorbing ABS casing, vibration-damping feet, and advanced electronics ensure whisper-quiet operation at just 43 dBA.
Equipped with built-in wireless connectivity, the system can easily link with up to four additional units, allowing for multi-pump configurations and convenient monitoring. Whether used for residential water service, irrigation, gardening, or boosting pressure across multiple rooms or floors, the ESYBOX delivers constant water pressure, energy efficiency, and dependable performance in a modern, compact package.
DAB® ESYBOX Features:
- All-in-one solution
- Vertical or horizontal mount
- Whisper quiet operation at just 43 dBA
- Inverter technology ensures constant water pressure
- Adjustable LCD display
- Anti-vibration feet
- Expandable - connect up to four units
- Wireless connectivity for multi-pump systems
- Includes: Connection pieces, power cord
Product Specifications:
- Voltage Supply: Single Phase 220-240V, 50/60 Hz
- Operating Range: capacity up to 32 gpm
- Max Head: Up to 180 ft.
- Inlet Size: 1in
- Outlet Size: 1in
- Number of Impellers: 3
- Maximum Liquid Temperature: 104°F
- Maximum Suction Depth: 26 ft.
- Maximum Ambient Temperature: +122°F
- Maximum Operating Pressure: 115 psi
- Degree of Protection: IPX4
- Motor Insulation Class: F
- Certifications: Approved to NSF61, 372, UL and CSA standards
