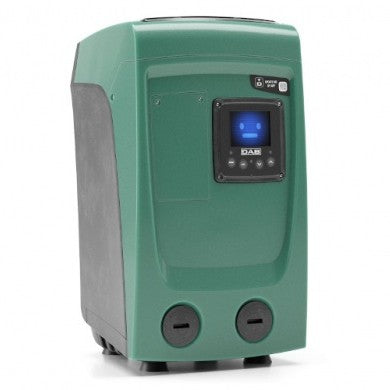

The DAB® ESYBOX Mini 3 is a compact automatic pressurization system designed to supply consistent water pressure for single residential applications. The system allows for adjustable pressure settings between 15 and 80 psi, ensuring steady performance tailored to household needs.

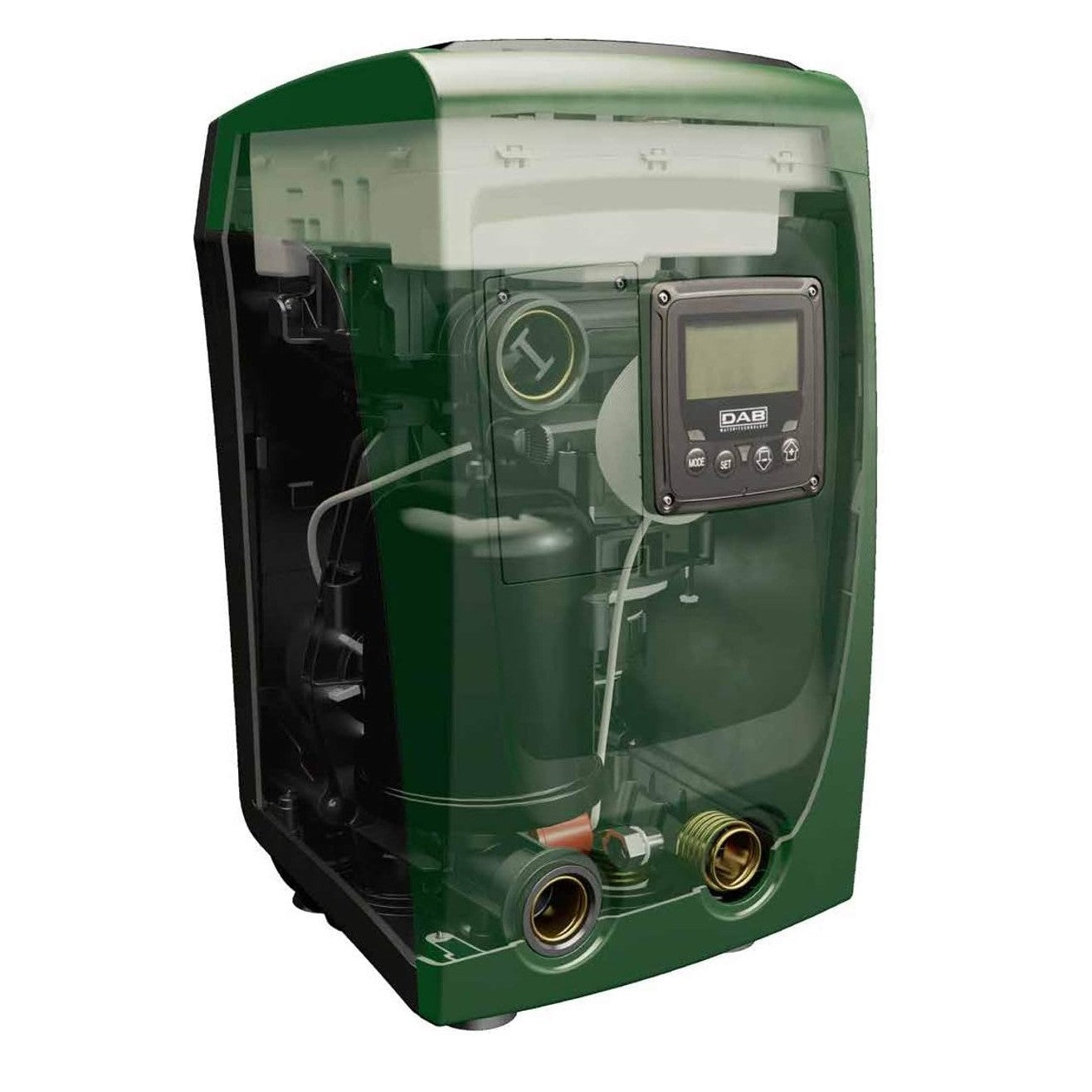

Featuring advanced variable frequency drive (VFD) technology, the ESYBOX Mini 3 optimizes energy efficiency while supporting a variety of uses, including drinking water supply and garden irrigation. The unit is delivered as a complete solution, incorporating a high-performance pump, smart electronics, pressure and flow sensors, a built-in expansion tank, a check valve, and a clear LCD display — all within a compact design suitable for both vertical and horizontal installation, even in tight spaces with limited ventilation.
DAB® ESYBOX Mini 3 Features:
- Compact design
- All-in-one solution
- Vertical, horizontal or wall mount
- Whisper quiet operation at just 43 dBA
- Inverter technology ensures constant water pressure
- Adjustable LCD display
- Variable frequency drive
- Anti-vibration feet
- Wireless connectivity for multi-pump systems
- Includes: Connection pieces, power cord
Product Specifications:
- Motor Power: 0.85 kW / 1.1 hp
- Voltage Supply: Single Phase 115-127V, 50/60 Hz
- Maximum Flow Rate: Up to 21.1gpm
- Max Head: Up to 180 ft.
- Inlet Size: 1 in.
- Outlet Size: 1 in.
- Number of Impellers: 3
- Liquid Temperature Range: 32°F to +104°F
- Maximum Suction Depth: 26 ft.
- Maximum Ambient Temperature: +122°F
- Maximum Operating Pressure: 109 psi
- Motor Insulation Class: F
- Type of Installation: Fixed in horizontal or vertical position
- Type of Installation: Fixed in vertical position
- Certifications: Approved to NSF61, 372, UL and CSA standard
- Dimensions: 17.28 in. H x 10.35 in. W x 9.28 in. D
Additional Information:
ESYBOX Mini 3 Technical Sheet (PDF)
ESYBOX Mini 3 Quick Guide (PDF)
ESYBOX Mini 3 Manual (PDF)
