Barnstormer Circulation Fan
Barnstormer Circulation Fan
Barnstormer Circulation Fan
Barnstormer Circulation Fan
Barnstormer Circulation Fan
Barnstormer Circulation Fan

Barnstormer Circulation Fan

FA-VBS-12

$225.68 Sale price
/

  • Ships directly from manufacturer - departs in about 14 business days
  • Inventory on the way
Size

Patented Open GuardThe Barnstormer is the perfect air flow solution for any agricultural application. The special patented design of this fan provides constant temperature, controls flies, controls ammonia gases and eliminates condensation while reducing heat stress. The Barnstormer is the only fan on the market with an Exclusive Open Front Feature. This unique design helps reduce cleaning and maintenance time by 75%. Hay, straw, chicken feathers or dust build up removed in just a minute. Includes white epoxy coating and adjustable tilt bracket.

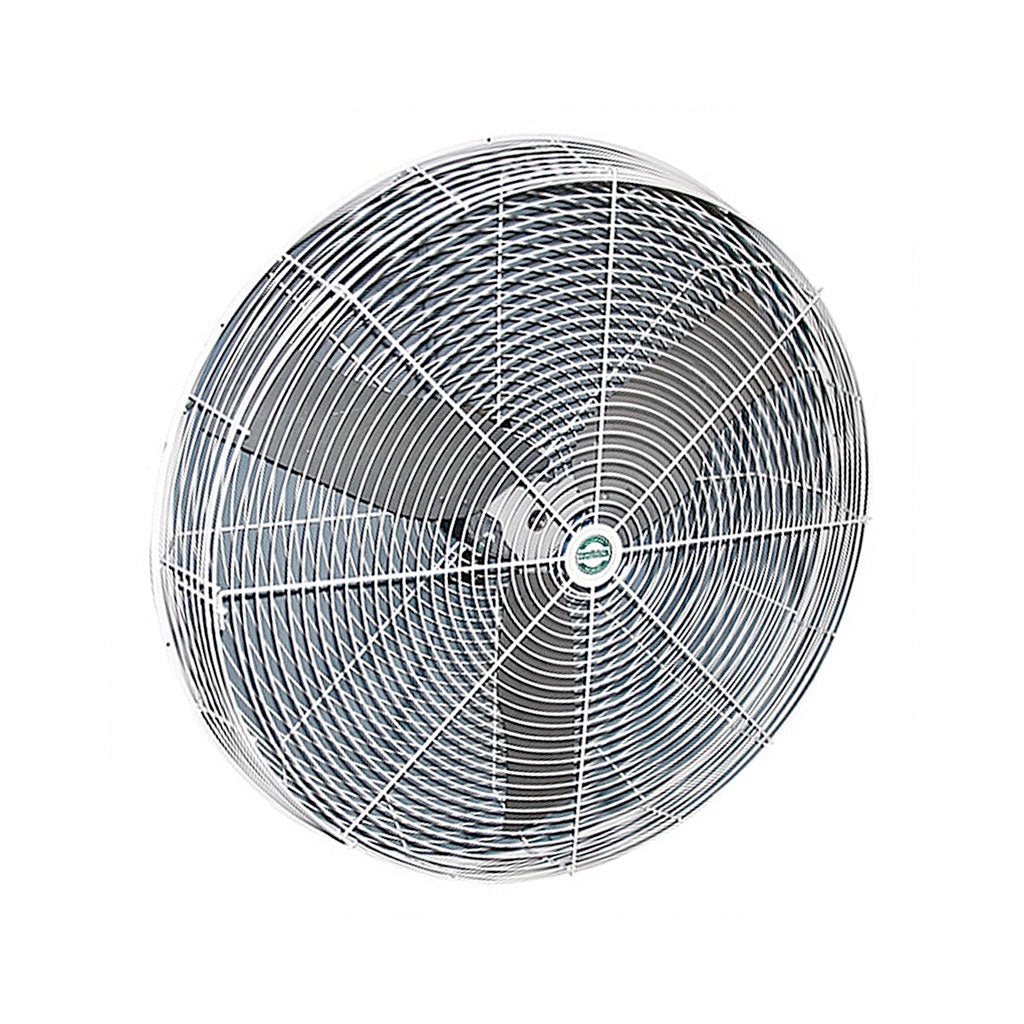

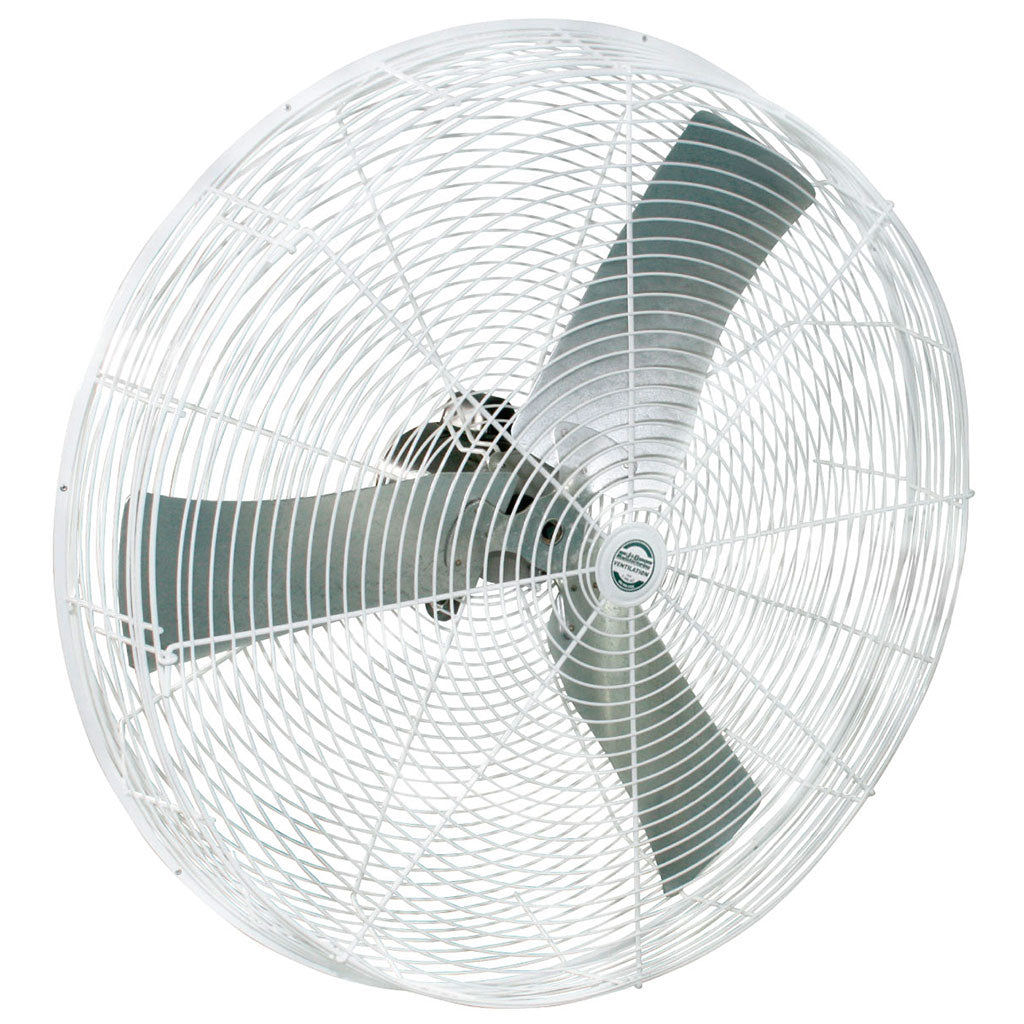

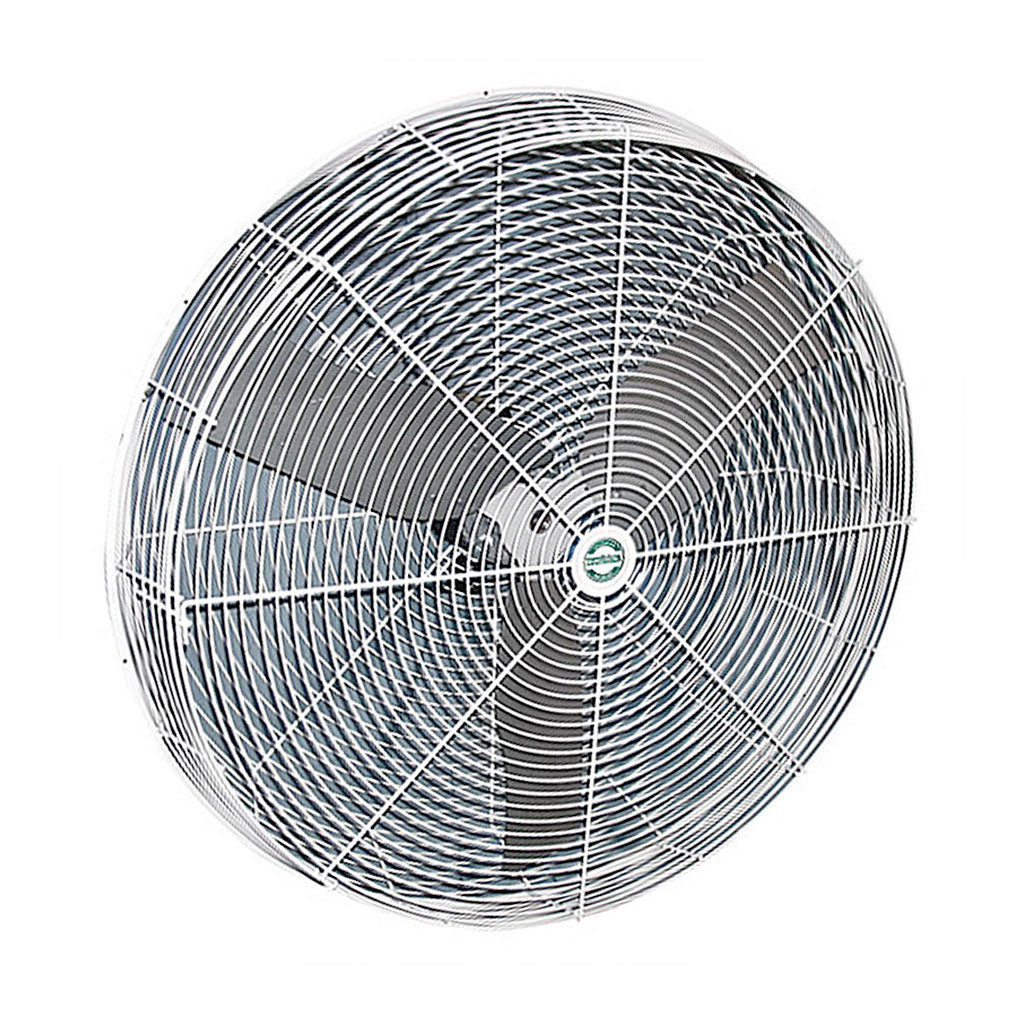

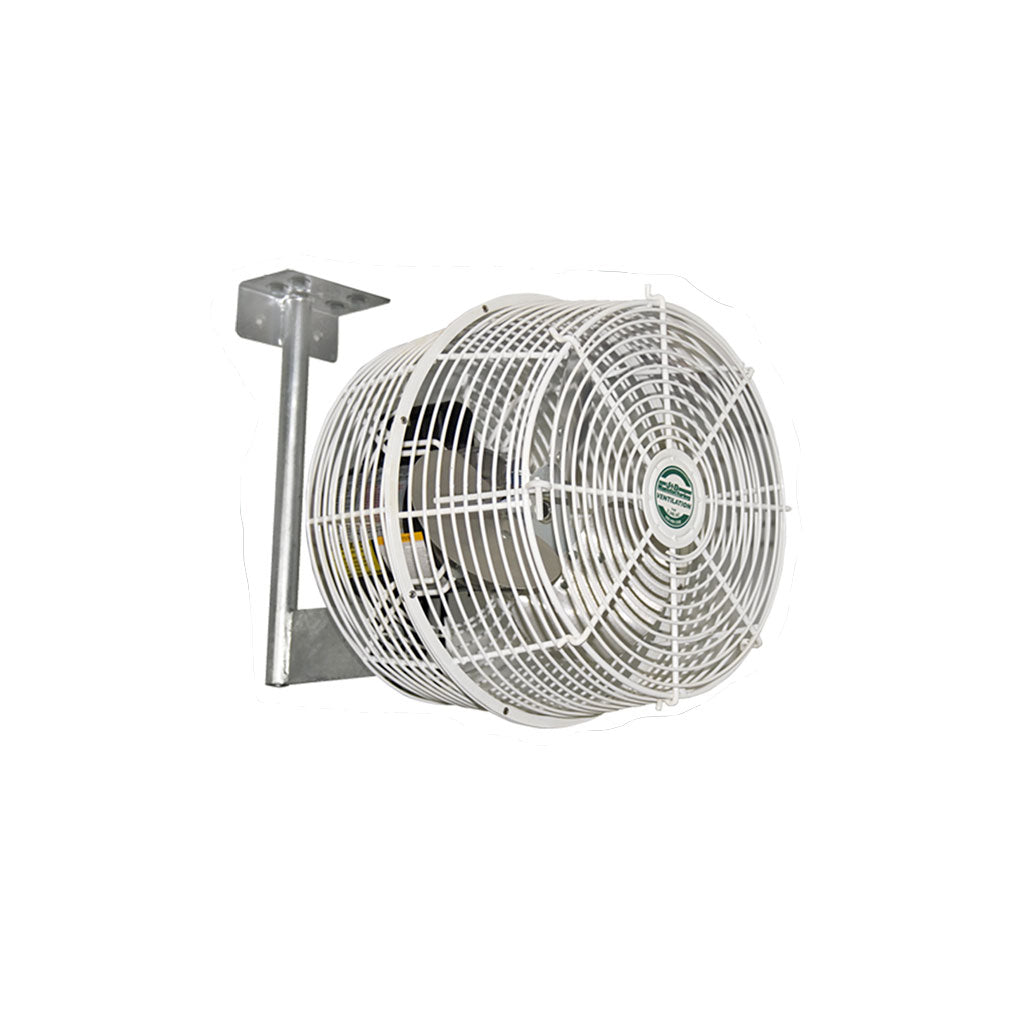

The Barnstormer comes in 12", 20", 24", or 36" diameters. 36 inch fan maintains a 3.5 MPH wind at 35 feet.

Standard Features

  • Provides constant temperature
  • Controls flies
  • Eliminates condensation
  • Stabilizes production
  • Reduces heat stress
  • Controls odors caused from ammonia gases
  • Lowers maintenance cost up to 75%
  • No hot or cold spots throughout the building
  • Complete distribution of air in every direction, going under, over and in-between the animals
  • Optional 6-way mounting bracket available

Performance Data

Model
No.
Size
HP Thrust
CFM
Thrust
CFM/Watt
Prop RPM Volts Phase Speed
VBS12 12" 1/10 810
7.2 3-Alm 1690 115/230 1 Variable
VBS20 20" 1/3 3,650 11.8 3-Alm 1691 115/230 1 Single
VBS24 24" 1/2 5,250 12.1 3-Alm 1666 115/230 1 Single
VBS36A 36" 1/2 10,050 17.6 3-Glv 844 115/230 1 Single
VBS36CF 36" 1/2 10,000 20.3 3-Glv 846 230/460 3 Single

Placement Diagram

Based on a 12" Fan
