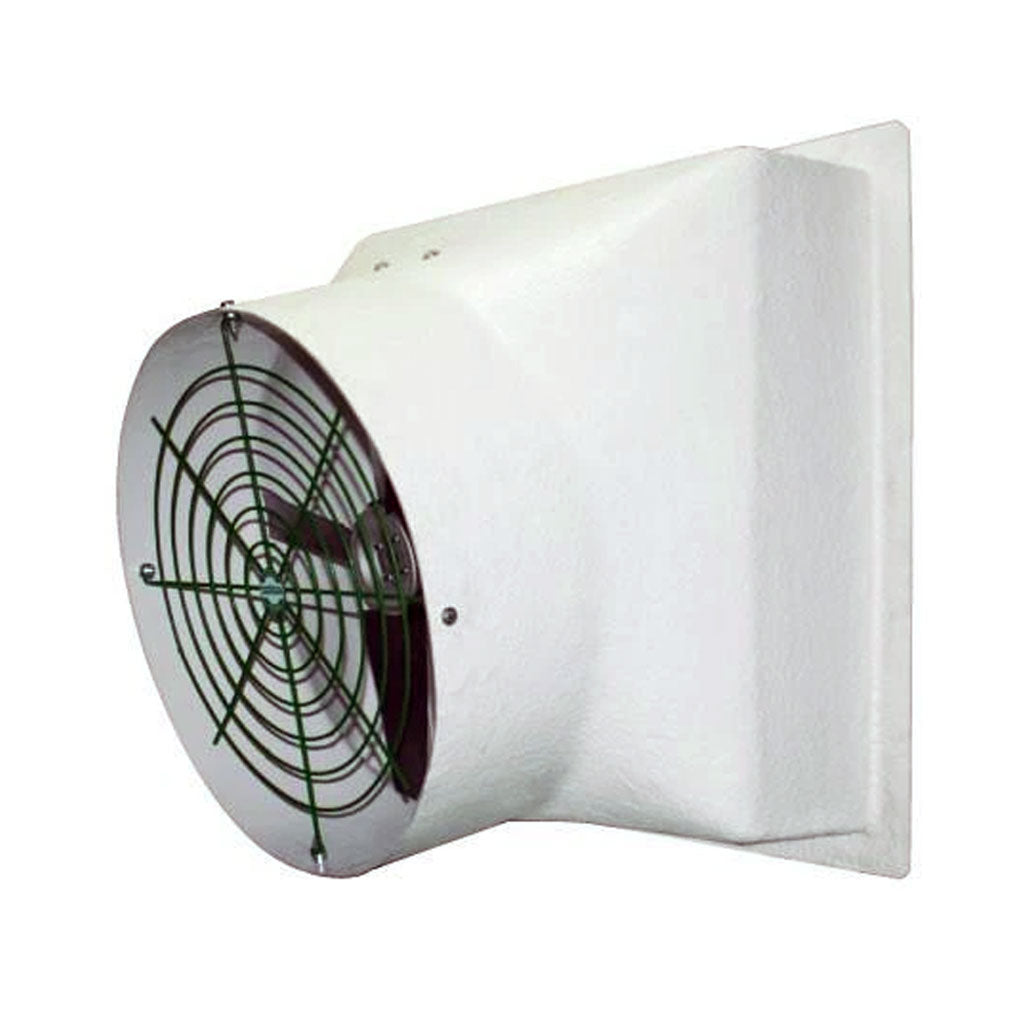

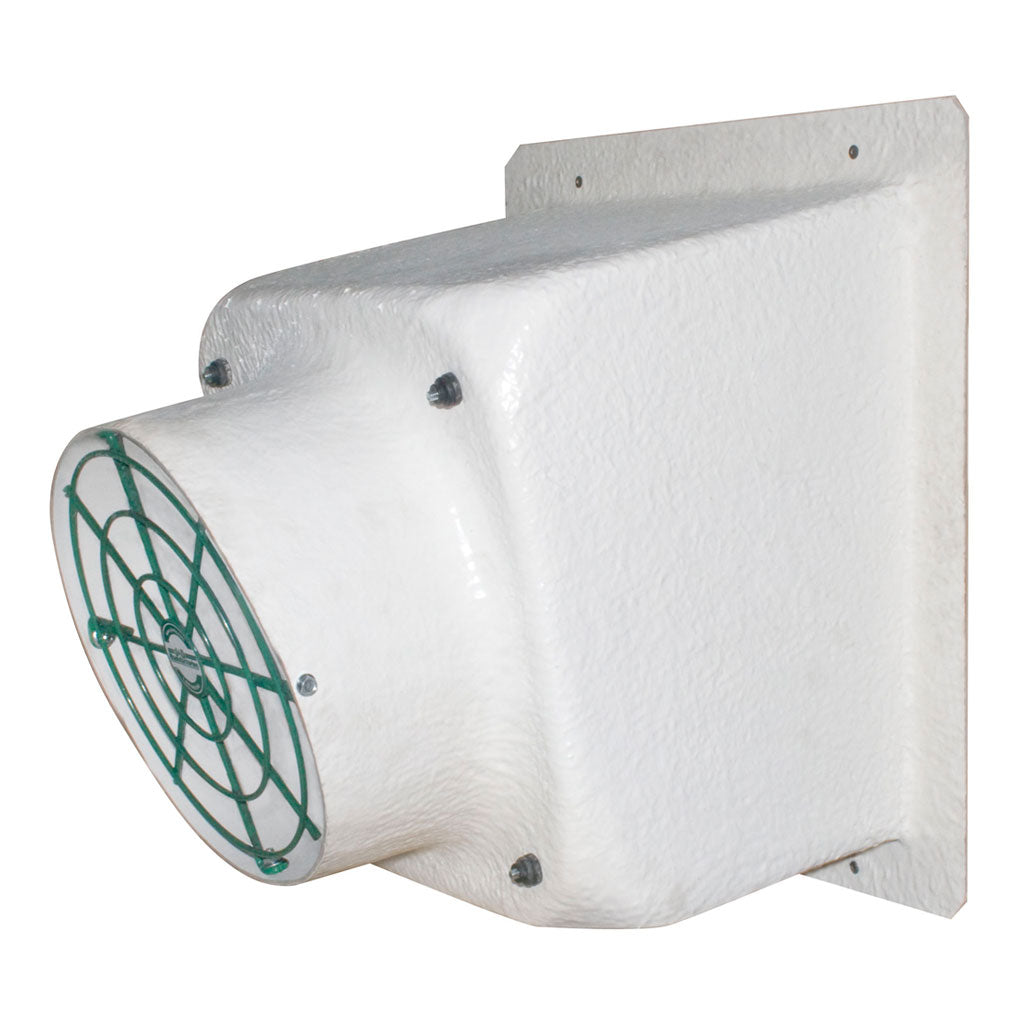

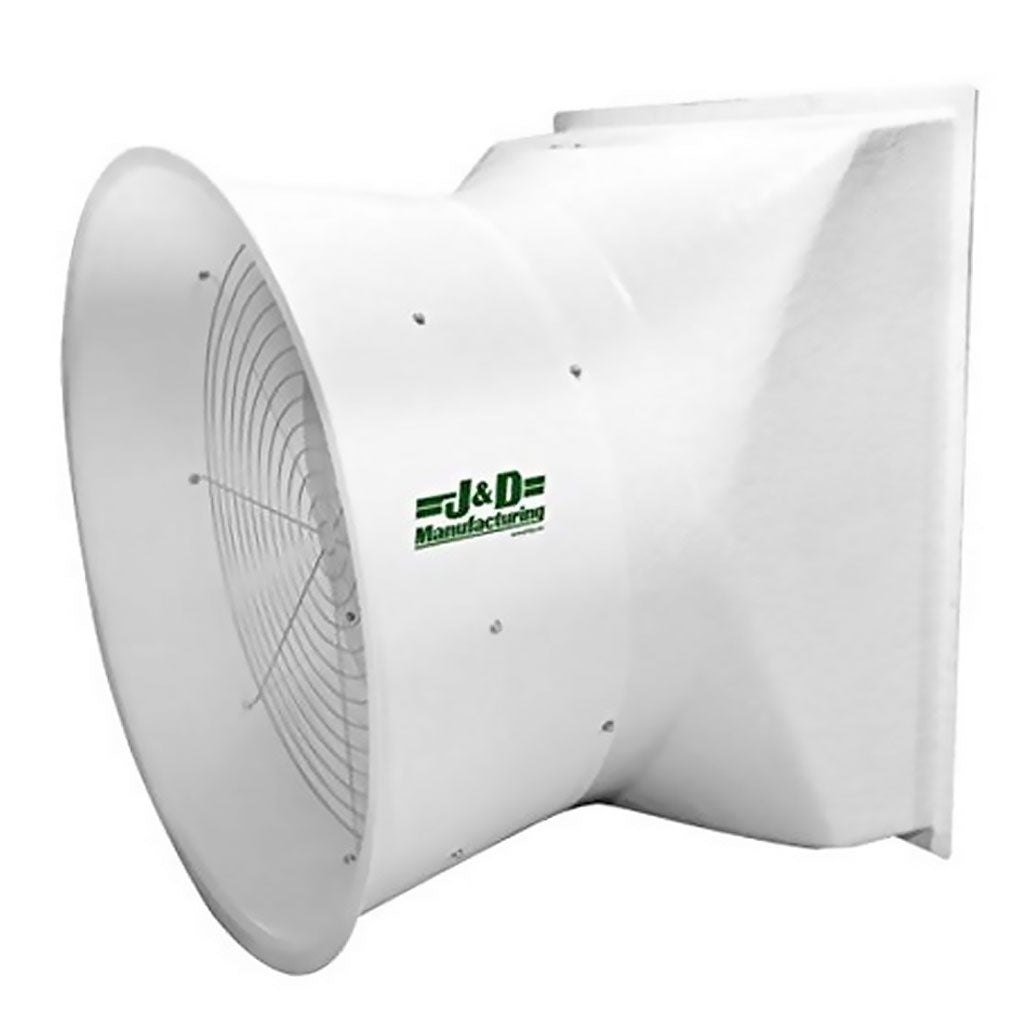

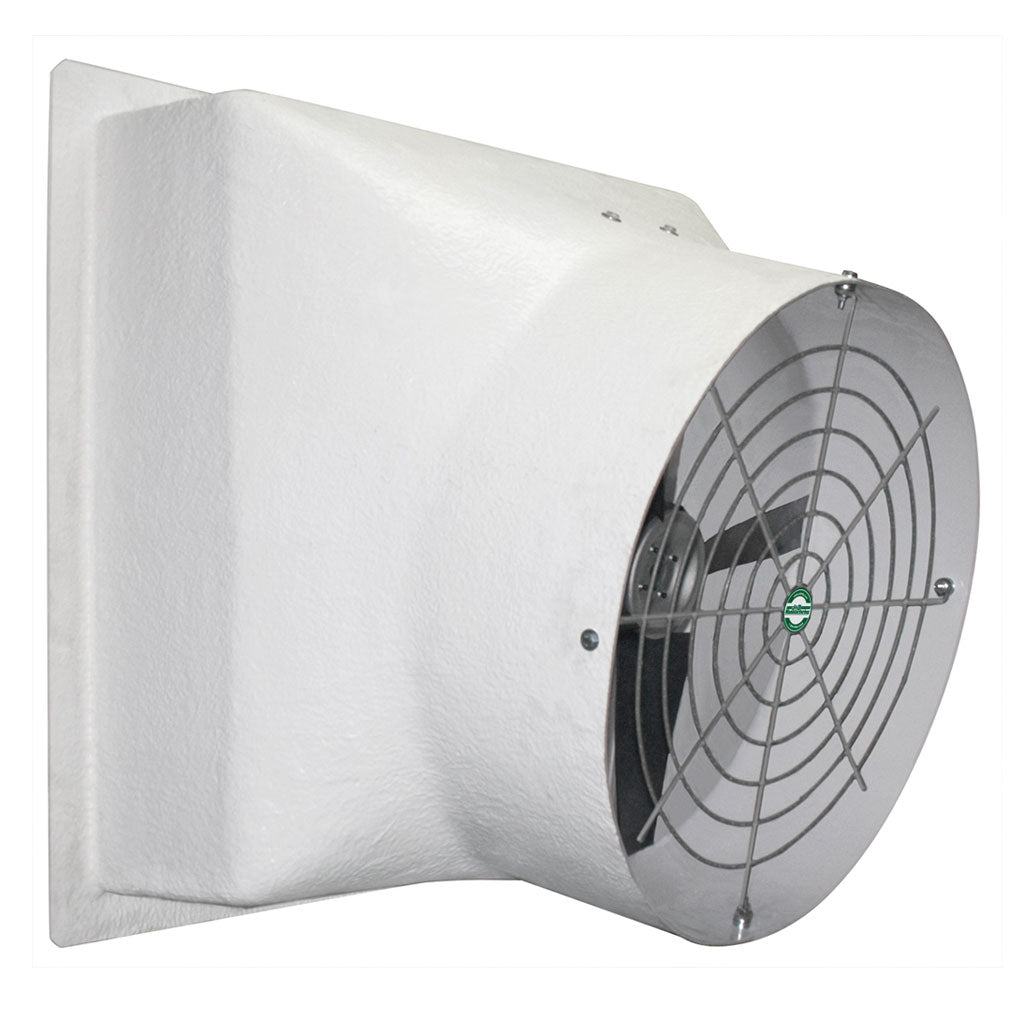

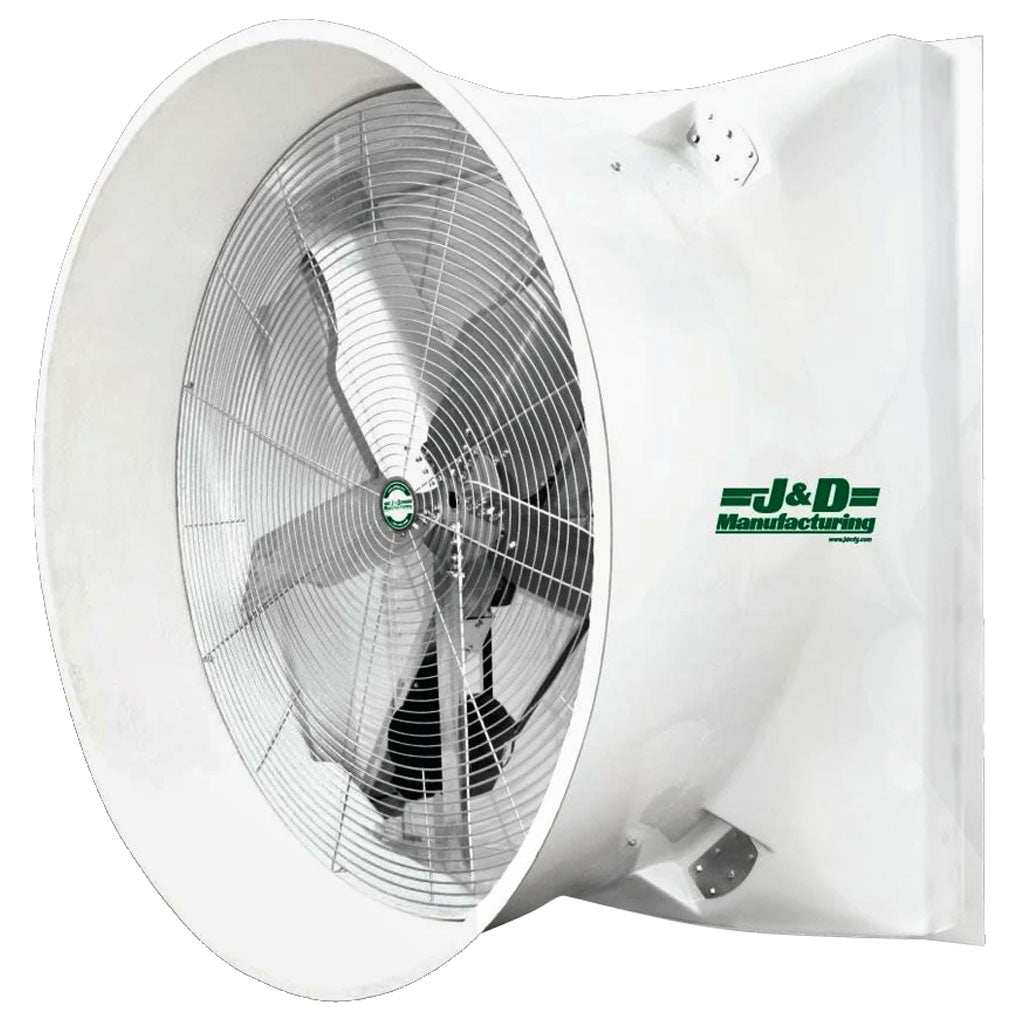

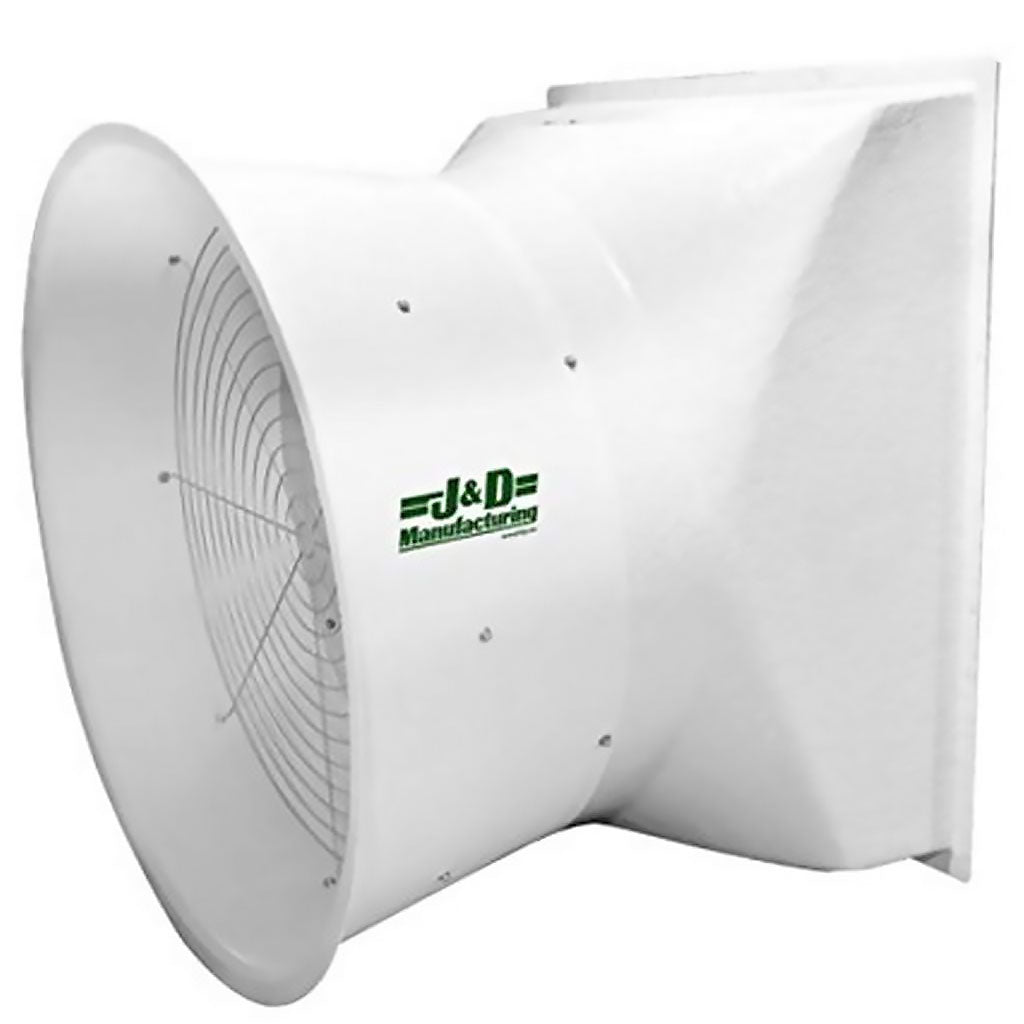

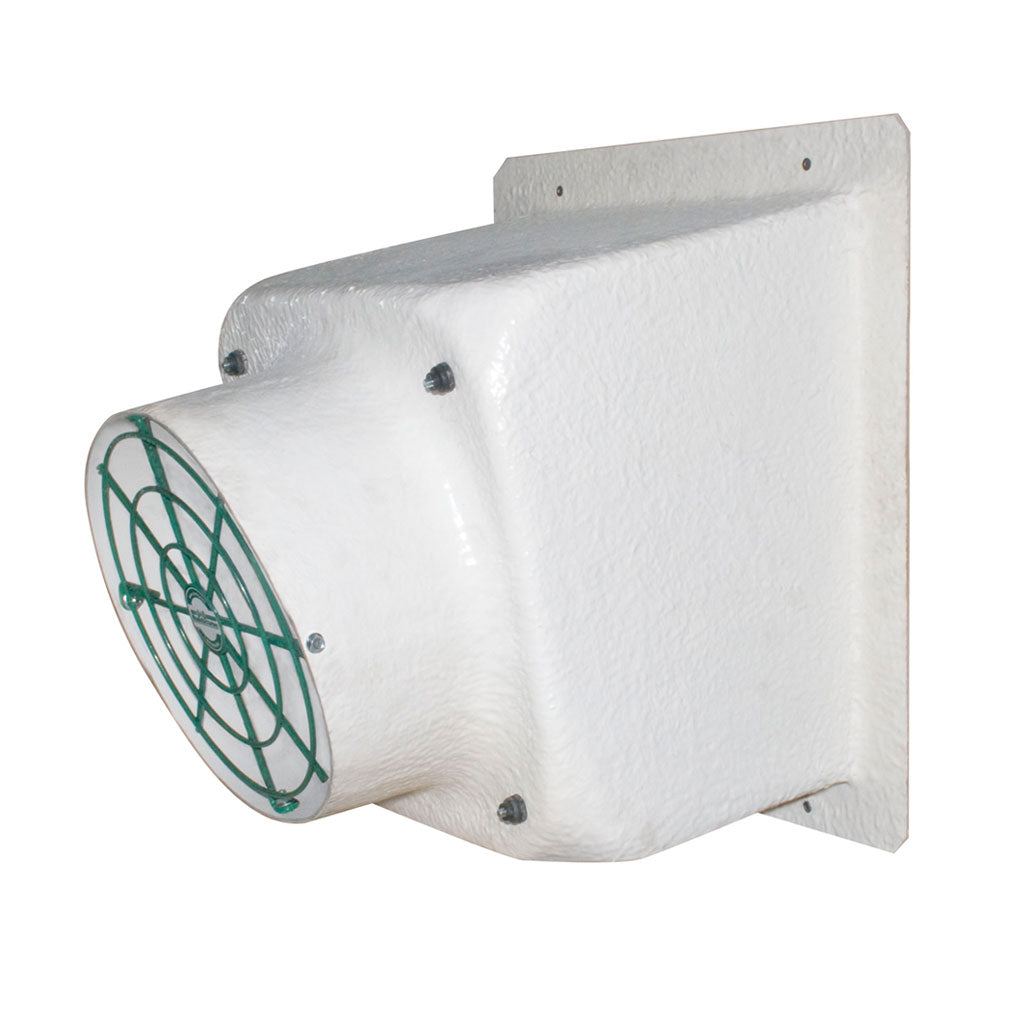

Tornado Fiberglass Exhaust Fan
Tornado Fiberglass Exhaust Fan
Tornado Fiberglass Exhaust Fan
Tornado Fiberglass Exhaust Fan
Tornado Fiberglass Exhaust Fan
Tornado Fiberglass Exhaust Fan
Tornado Fiberglass Exhaust Fan
Tornado Fiberglass Exhaust Fan

Tornado Fiberglass Exhaust Fan

FA-VFP-12P


$659.00 Regular price
/
20% Off!  FINAL DAY
Use code CYBER24 at checkout  *See details
  • Ships directly from manufacturer - departs in about 14 business days
Size

Great all-purpose exhaust fan for agricultural, greenhouse or industrial applications. The molded fiberglass housing of this fan provides for low maintenance, rust free, corrosion free, easy cleaning and high performance.

Tornado Fiberglass Exhaust Fan Features:

  • Fan Housing: Molded fiberglass; extremely smooth inside for low maintenance, rust free, corrosion free, easy cleaning, and high performance. Lifetime Warranty on all housings and stainless steel mounts.
  • Fan Blades: Poly plastic blades (12-24" fans), light weight, highly efficient, easy cleaning, balanced for smooth operation and extended life of blade and motor. Heavy duty galvanized blades on 36" and 50" fans. Stainless steel available on the 36" fan.
  • Motor: Tough, energy efficient, totally enclosed, automatic thermal protection, prelubricated ball bearings, dual voltage single/variable speed. 2-Year warranty and 3 phase motors available upon request. Heavy Duty Automatic belt tightener on all belt drive models.
  • Shutters: White, PVC aerodynamically designed for smooth operation and less air drag. Improves fan efficiency. Stainless steel corner clips inside of PVC for strong shutter construction. Nylon pivot on each louver. Aluminum shutters available upon request.
  • Flush Mount Design: Eliminates any protrusions or obstructions in the barn access area
  • Slant Wall Housing: The perfect design for more efficient air flow

Dimensions

12", 16", 20", 24", 36", or 50".

Fan Performance Specifications

Select desired fan model from drop down box at the top right of the page. Sizing information below.

Model No. Type Fan CFM HP RPM Speed Drive Cone Blade
VFP12P 12" 1147 1/3 1700 Single/Variable Direct No Poly Plastic
VFP16P 16" 2533 1/3 1700 Single/Variable Direct No Poly Plastic
VFP20P 20" 3000 1/3 1700 Single/Variable Direct No Poly Plastic
VFP24P 24" 4911 1/2 1725 Single/Variable Direct No Poly Plastic
VFP24PC 24" 5599 1/2 1725 Single/Variable Direct Yes Poly Plastic
VFP36G 36" 8938 1/2 825 Single Direct No Galvanized
VFP36GC 36" 9479 1/2 825 Single Direct Yes Galvanized
VFP50GC 50" 20354 1 525 Single Belt No Galvanized

Additional Information

Tornado Fiberglass Exhaust Fan Installation (PDF)


How do I size my fan and shutters system?

1. The first thing that you need to determine is the amount of air required. This is stated in CFM (Cubic Feet of Air per Minute).

2. Use the following formula to determine the CFM required for your greenhouse:
CFM = Length x Width x Height
Example: Greenhouse 12' wide x 24' long x 12' high requires 3456 CFM (12 x 24 x 12 = 3456)

3. Reference the above table. Select the appropriate combination of fan(s) to achieve the necessary CFM rating. Be sure to match the total CFM output for your exhaust fan(s) to the CFM ratings for your Inlet Shutters.

Click here to view fan installation detail
