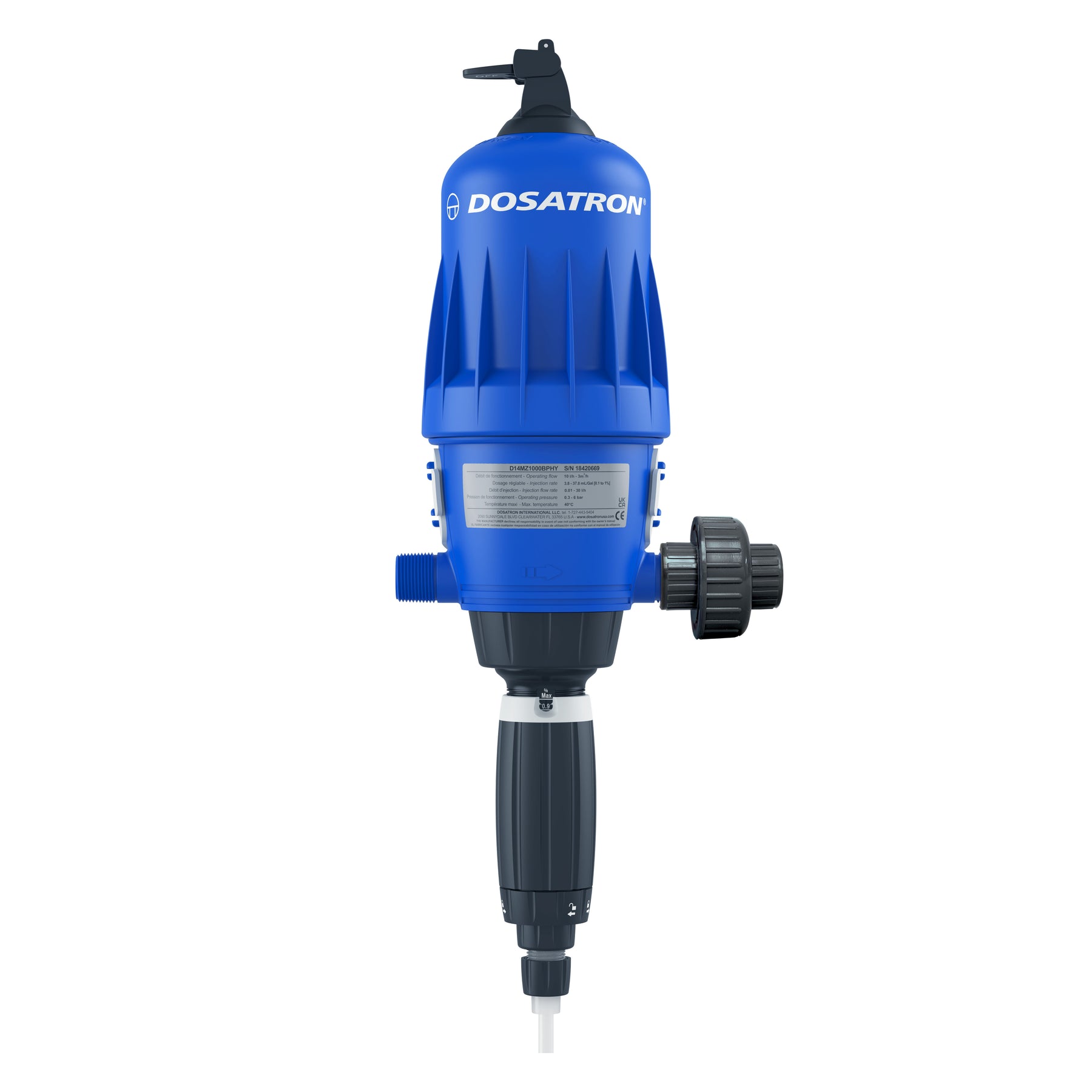

Dosatron Nutrient Delivery System 14 GPM Unit
Dosatron Nutrient Delivery System 14 GPM Unit
Dosatron Nutrient Delivery System 14 GPM Unit
Dosatron Nutrient Delivery System 14 GPM Unit
Dosatron Nutrient Delivery System 14 GPM Unit

Dosatron Nutrient Delivery System 14 GPM Unit

FI-DOS-14-0111


$1,185.99 Regular price
/
  • Ships directly from manufacturer - departs in about 14 business days
Size

The Dosatron Nutrient Delivery System 14 GPM Unit is perfect for the indoor grower. It's water-powered so no electricity is needed and it includes a union for easy installation into the Nutrient Delivery System (NDS).

Included Accessories: Mounting bracket, suction hose, bypass, union, weighted strainer, and quick start guide.

1.25 to 11 mL (0.25 to 2.25 tsp) | 0.03 to 0.3%

With a dilution range of 1:3000 to 1:333, it is perfect for food safety and sanitation.

  • Connection Size: 3/4" NPT
  • Unit Weight: 6 lbs
  • Dimensions: 21" x 6 5/16"
  • mL/gal: 1.25 to 11 mL
  • Tsp/gal: 0.25 to 2.25
  • Flow: 0.05 to 14 GPM (0.19 to 50 LPM)
  • Pressure: 4.3 to 85 PSI
  • Ratio: 1:3000 to 1:333
  • Percentage (%): 0.03 to 0.3%
  • Oz/gal: 0.0425 to 0.384
  • Item #: D14MZ3000VFBPIIK

D14MZ3000 Specification Sheet (PDF)
D14MZ3000 Schematics (PDF)

7.5 to 75 mL (1.5 to 15 tsp) | 0.2 to 2%

  • Connection Size: 3/4" NPT
  • Unit Weight: 6 lbs
  • Dimensions: 19 1/8" x 6 5/16"
  • mL/gal: 7.5 to 75 mL
  • Tsp/gal: 1.5 to 15
  • Flow: 0.05 to 14 GPM (0.19 to 50 LPM)
  • Pressure: 4.3 to 85 PSI
  • Ratio: 1:500 to 1:50
  • Percentage (%): 0.2 to 2%
  • Oz/gal: 0.256 to 2.560
  • Item #: D14MZ2VFBPHY

D14MZ2VFBPHY Specification Sheet (PDF)
D14MZ2 Schematics (PDF)

37.5 to 375 mL (7.5 to 75 tsp) | 1 to 10%

  • Connection Size: 3/4" NPT
  • Unit Weight: 6 lbs
  • Dimensions: 19 1/8" x 6 5/16"
  • mL/gal: 37.5 to 375 mL
  • Tsp/gal: 7.5 to 75
  • Flow: 0.05 to 14 GPM (0.19 to 50 LPM)
  • Pressure: 7 to 85 PSI
  • Ratio: 1:100 to 1:10
  • Percentage (%): 1 to 10%
  • Oz/gal: 1.280 to 12.800
  • Item #: D14MZ10VFBPHY

D14MZ10VFBPHY Specification Sheet (PDF)
D14MZ10 Schematics (PDF)






3.75-37.5 mL (1-6.5 tsp) | 0.1 to 1%

The Dosatron D14MZ1000BPVFHY-14 GPM is the ideal injector for the most common liquid fertilizer programs, offering higher flow rates and greater chemical compatibility than existing technology. Because the D14MZ1000BPVFHY can be adapted to new or existing Lo-Flo Nutrient Delivery Systems, installation is easier than ever. Simply swap out the injection stem and plunger assembly to achieve the extended dosing range.

Included Accessories: 6’ clear suction tube, strainer, bypass, weight, mounting bracket and operating manual

  • Dilution Range: 1:1000 - 1:100 (0.1% to 1%)
  • Injection Range mL/gal: 3.75 to 37.5 mL/gal
  • Water Flow Range: 0.05 to 14 GPM
  • Operating Pressure Range: 4.3 to 85 PSI
  • Housing Materials: Polypropylene
  • Dimensions: 19 1/18" x 6 5/16"
  • Weight: 6 lbs
  • Connection Size: 3/4" NPT
  • Maximum Temperature: 104 degrees F
  • Item #: D14MZ1000BPVFHY-14

D14MZ1000BPVFHY-14 Schematics (PDF)
D14MZ1000BPVFHY-14 Installation Instructions (PDF)


Additional Information

D14 Series Operating Manual (PDF)
D14 Series Quick Start Guide (PDF)
Nutrient Delivery System LO-FLO SERIES 3/4" Kits Assembly Instructions (PDF)
