FA-PFPS-12C


$979.00 Regular price
/
  • Ships directly from manufacturer - departs in about 14 business days
Size

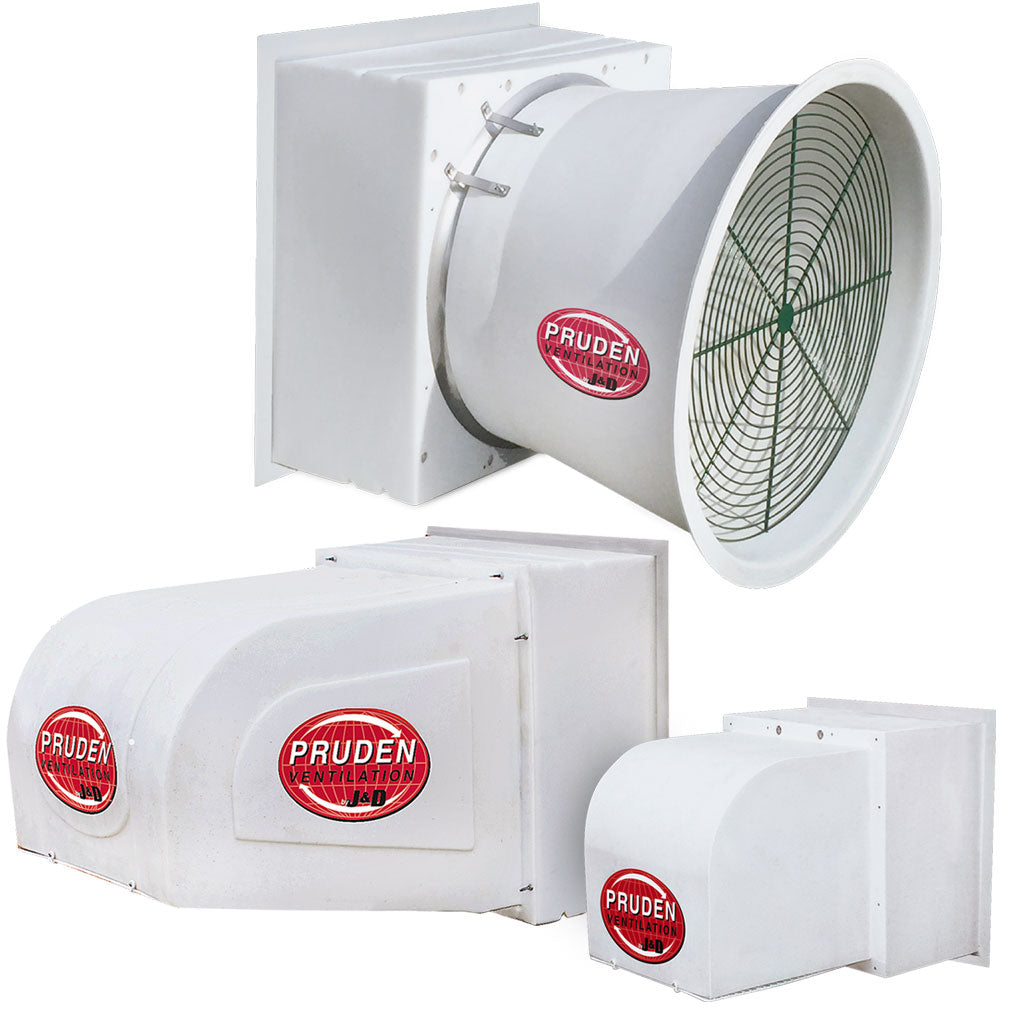

The Pruden Polystainless Exhaust Fan from J&D Manufacturing is a proven performer that’s built to last. Polystainless fans are manufactured with a poly and stainless steel construction for the harshest agricultural environments. The extended poly weather hood protects the fan from wind and weather for maximum efficiency all year long.

  • Impact resistant, molded, high-density polyethylene housing
  • Stainless steel venturi, motor mount and hardware for ultimate corrosion resistance
  • Durable, molded, poly weather hood for efficient operation in all wind and weather conditions
  • White powder-coated hood guard to prevent birds from entering
  • 3- or 4-bladed poly propellers with cast aluminum hub
  • One-piece poly discharge cone available for 24” fans
  • Direct drive motor
  • 10 Year Warranty on poly fan body, weather hood and discharge cone
  • High-efficiency totally enclosed, maintenance-free, motors have completely sealed ball bearings, and are covered by a Two Year Warranty
  • Single Phase, 60 Hz, 115/230 Volts

Fan Performance Specifications

Pruden Polystainless Fan with Poly Weather Hood
Pruden Polystainless Fan with Poly Weather Hood

Part No. Size HP Amps* Spd RPM @ .05" SP
CFM CFM/Watt
Prop Shutter
PFPS12C 12"
1/6 2.0/1.0 1/Var^ 1,625 1,395 / 5.9 3-Ply Yes
PFPS12CWO 12"
1/6 2.0/1.0 1/Var^ 1,625 1,395 / 5.9 3-Ply No

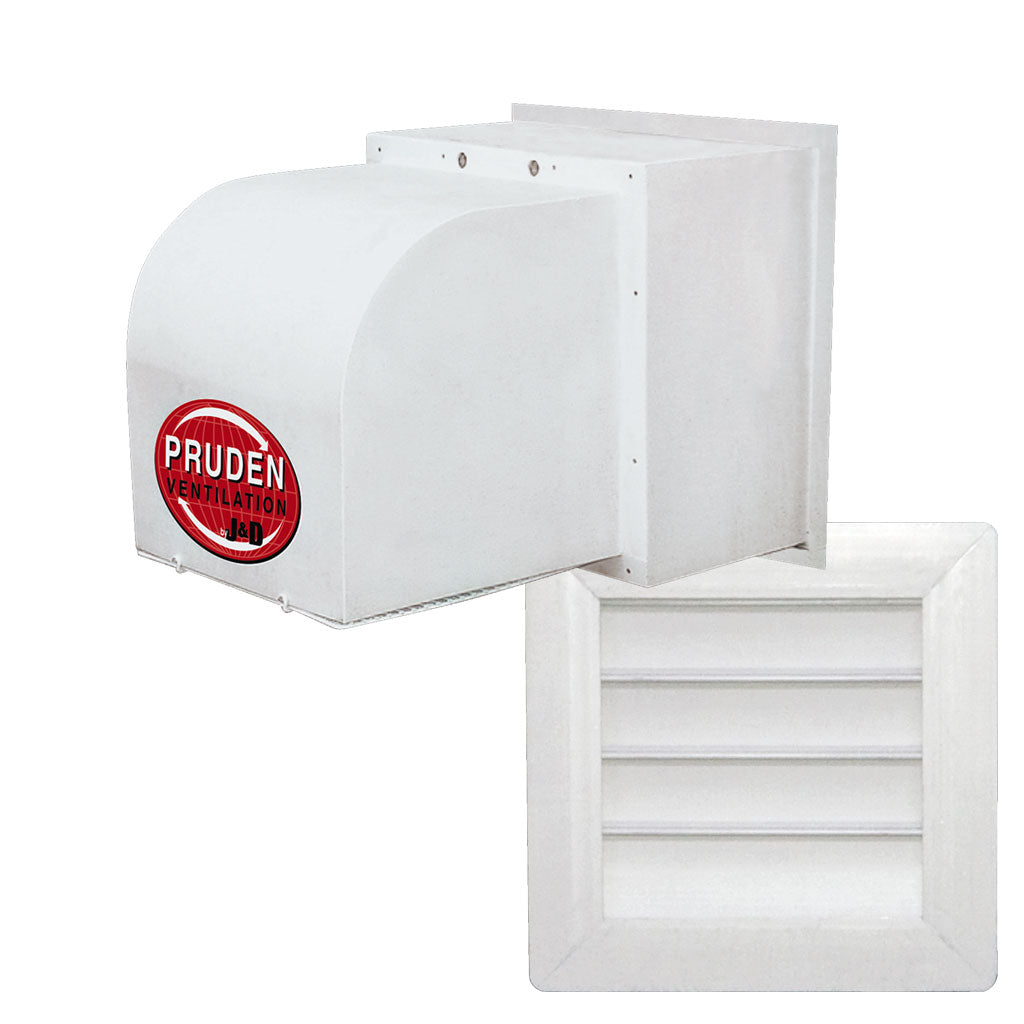

PFPS16D 16" 1/4 3.2/1.6 1/Var^ 1,625 2,540 / 11.1 3-Ply Yes

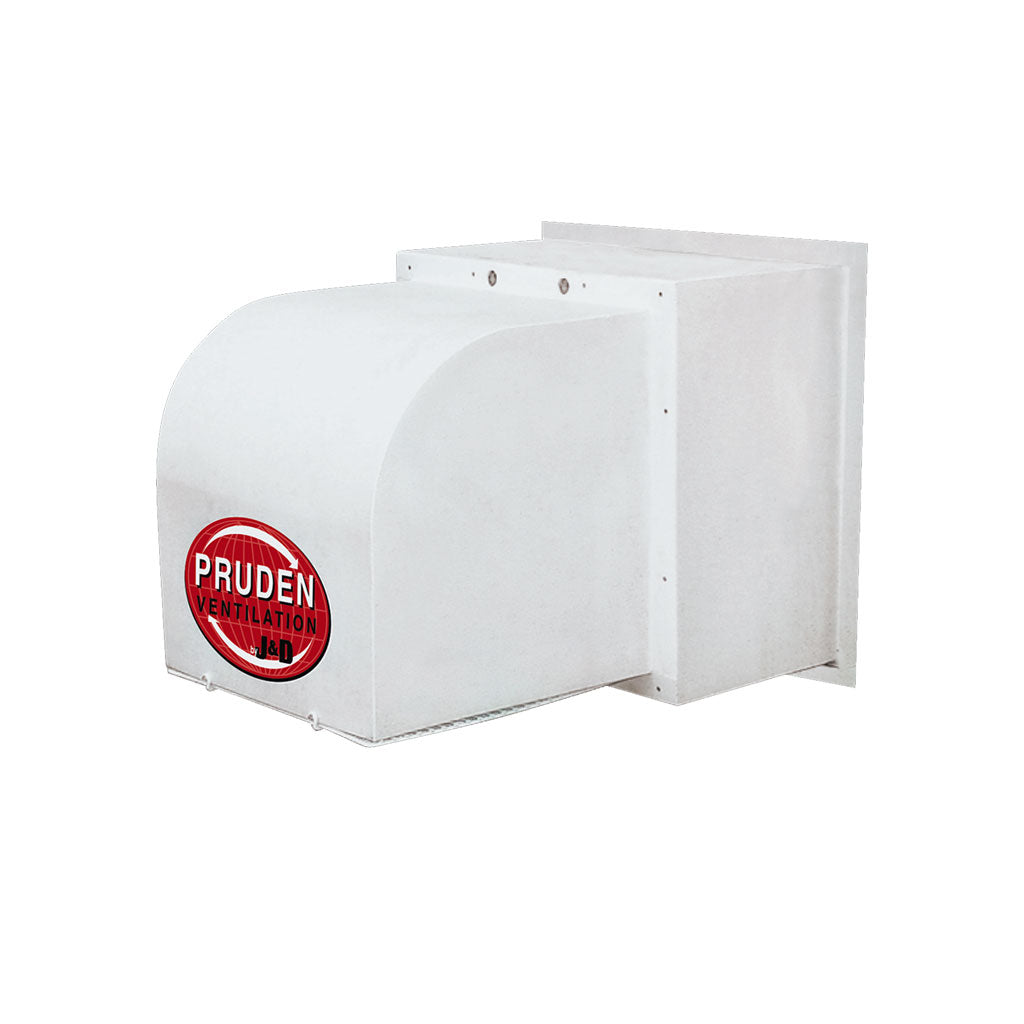

PFPS16DWOS 16" 1/4 3.2/1.6 1/Var^ 1,625 2,540 / 11.1 3-Ply No

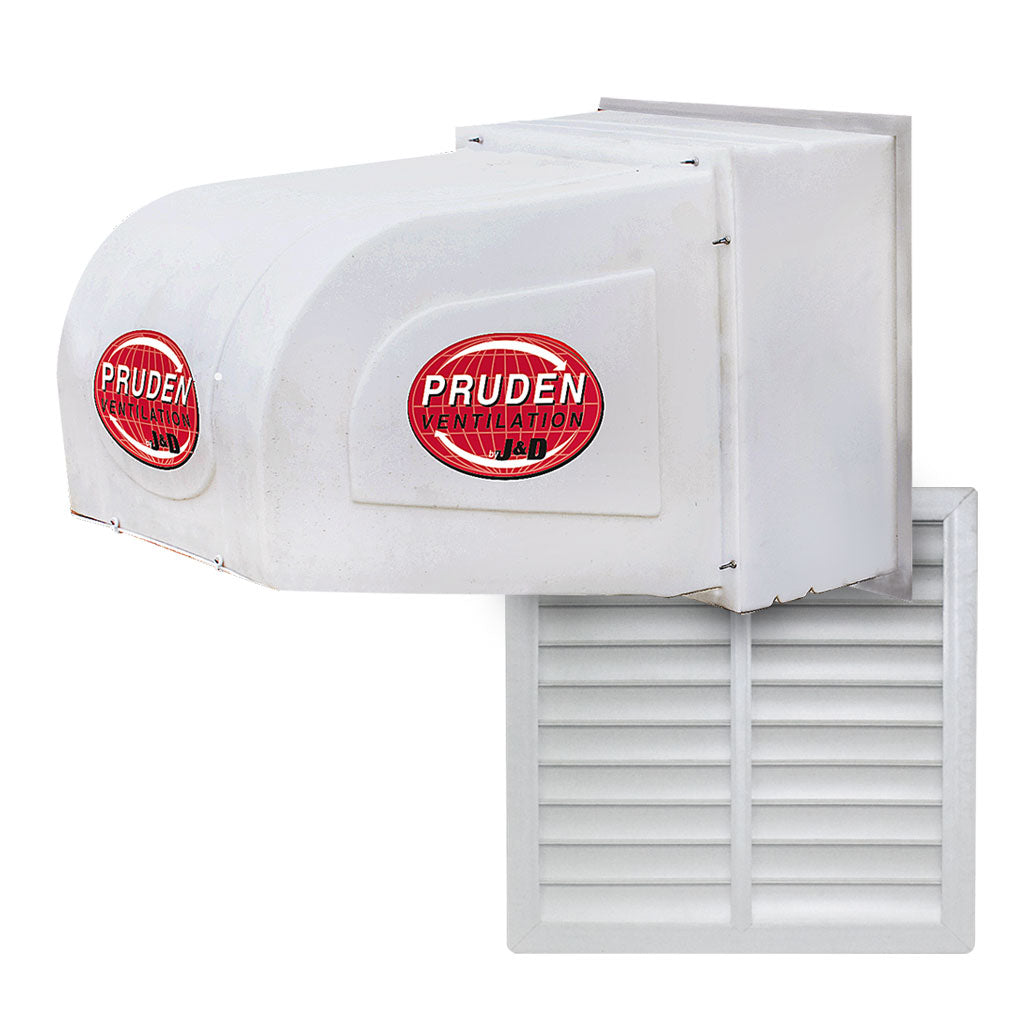

Pruden Polystainless Fan with Poly Weather Hood
Pruden Polystainless Fan with Poly Weather Hood

Part No. Size HP Amps* Spd RPM @ .05" SP
CFM CFM/Watt
Prop Shutter
PFPS20E 20" 1/4 3.2/1.6 1/Var^ 1,625 3,320 / 14.1 3-Ply Yes
PFPS20E-WO 20" 1/4 3.2/1.6 1/Var^ 1,625 3,320 / 14.1 3-Ply No
PFPS20G 20" 1/3 4.2/2.1 1/Var^ 1,625 4,095 / 12.3 3-Ply Yes
PFPS20GG 20" 1/2 5.5/2.8 1/Var^ 1,700 4,765 / 14.5 3-Ply Yes
PFPS20GWO 20" 1/3 4.2/2.1 1/Var^ 1,625 4,095 / 12.3 3-Ply No
PFPS24H 24" 1/3 3.8/1.9 1 1,075 5,210 / 14.9 4-Ply Yes
PFPS24H-WO 24" 1/3 3.8/1.9 1 1,075 5,210 / 14.9 4-Ply No

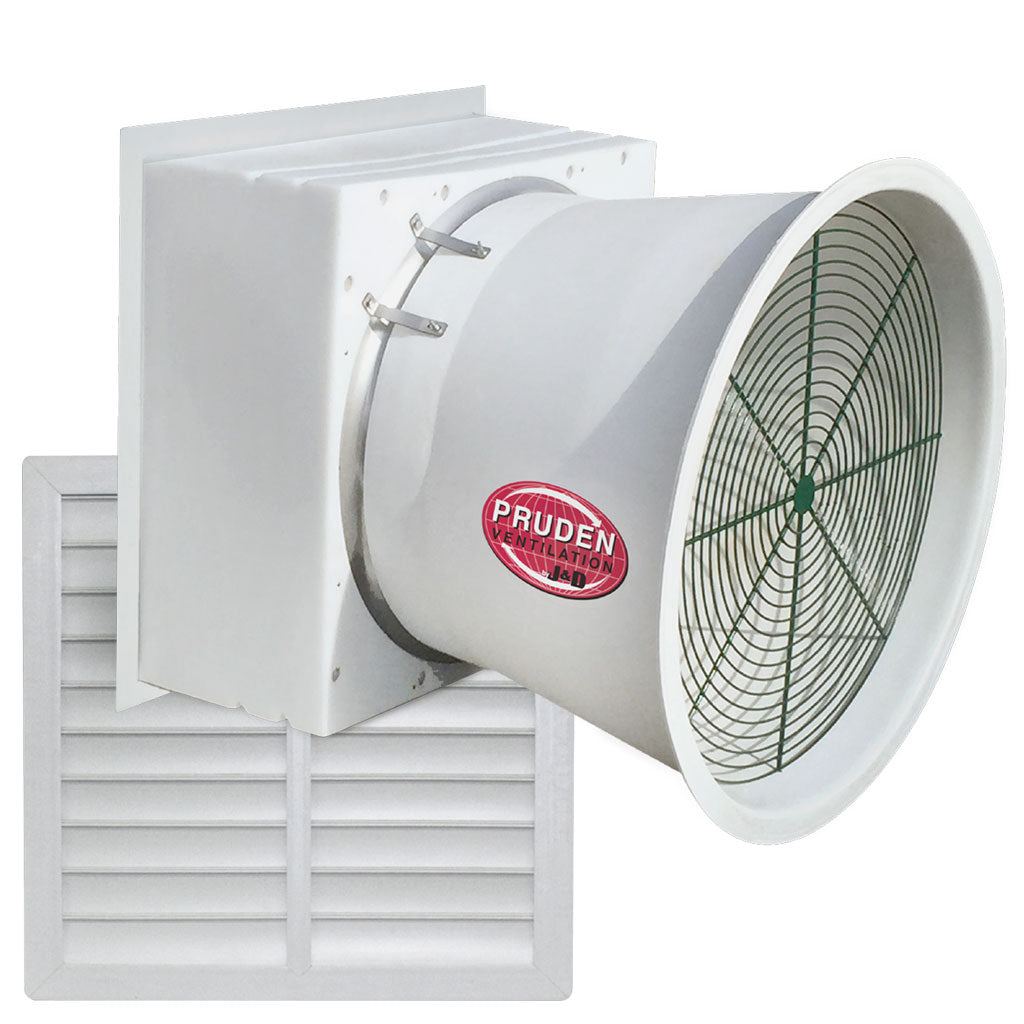

Pruden Polystainless Fan with Cone
Pruden Polystainless Fan with Cone

Part No. Size HP Amps* Spd RPM @ .05" SP
CFM CFM/Watt
Prop Shutter
PFPS24C 24" 1/3 3.8/1.9 1 1,075 5,850 / 17.5 4-Ply Yes
PFPS24C-WO 24" 1/3 3.8/1.9 1 1,075 5,850 / 17.5 4-Ply No

* - Amp information as documented on motor name plate
^ - Variable speed fans require separate variable speed control to adjust fan speed.


Rough Opening

Part No. Size Rough Opening
PFPS12C 12"
18 3/4" x 18 3/4"
PFPS12CWO 12"
18 3/4" x 18 3/4"
PFPS16D 16" 21 3/4" x 21 3/4"
PFPS16DWOS 16" 21 3/4" x 21 3/4"
PFPS24C 24" 29" x 29"
PFPS24C-WO 24" 29" x 29"
PFPS20E 20" 25 3/4" x 25 3/4"
PFPS20E-WO 20" 25 3/4" x 25 3/4"
PFPS20G 20" 25 3/4" x 25 3/4"
PFPS20GG 20" 25 3/4" x 25 3/4"
PFPS20GWO 20" 25 3/4" x 25 3/4"
PFPS24H 24" 29" x 29"
PFPS24H-WO 24" 29" x 29"

How do I size my fan and shutters system?

1. The first thing that you need to determine is the amount of air required. This is stated in CFM (Cubic Feet of Air per Minute).

2. Use the following formula to determine the CFM required for your greenhouse:
CFM = Length x Width x Height
Example: Greenhouse 12' wide x 24' long x 12' high requires 3456 CFM (12 x 24 x 12 = 3456)

3. Reference the above table. Select the appropriate combination of fan(s) to achieve the necessary CFM rating. Be sure to match the total CFM output for your exhaust fan(s) to the CFM ratings for your Inlet Shutters.

Click here to view fan installation detail
