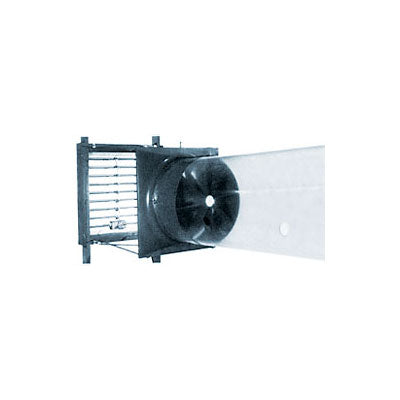

Coolair Power Tube Fan
FA-PTF-A12F17
$729.00
Regular price
- Ships directly from manufacturer - departs in about 2 weeks
Convey and distribute air from the Power Tube Fan at one end of the ventilated or heated space, through a pressurized polyethylene tube and into the house as uniformly as possible. The Power Tube Fan is for controlled environments where a precise tempering of air is critical to production. For the necessary low veloclty tempering of air, these fans and tubes are perfectly matched. The 12 and 18 inch fans are direct drive units The 24 and 30 inch fans are belt driven and incorporate the Coolair exclusive stationary shaft design from the Coolair NBF type units.
Important Note: Fan should be installed at a minimum of 8' above the ground due to the fan blades being exposed.
Standard Features
- Constructed of heavy gauge steel
- Air straightener vanes for efficient air distribution
- Totally enclosed heavy-duty motor with sealed ball bearings
- Propellers have six steel die formed blades
- Belt driven models have two sealed, lifetime lubricated, oversized shaft bearings
Dimensions
12" or 18" direct drive; 24" or 30" belt driven.
Fan Performance Specifications
| Model No. | Type Fan | CFM | Motor HP | Tube Size | Weight |
|---|---|---|---|---|---|
| PTF112F17 | Direct Drive | 1250 | 1/6 | 12 | 60 |
| PTFA18H16 | Direct Drive | 3650 | 1/3 | 19 | 72 |
| PTFB24H | Belt Drive | 4850 | 1/3 | 25 | 120 |
| PTFB30J | Belt Drive | 7550 | 1/2 | 30 | 150 |
| PTFB30L | Belt Drive | 10450 | 1 | 30 | 155 |
