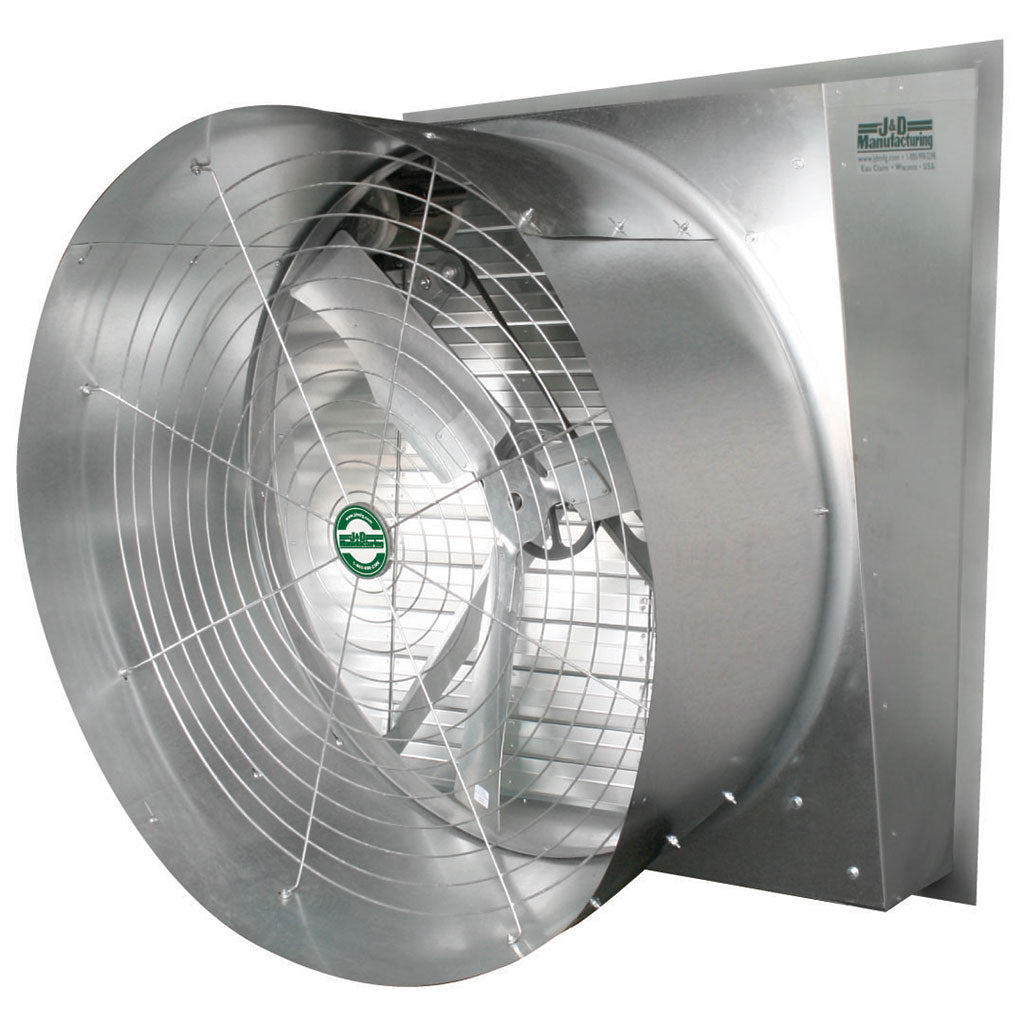

J&D Typhoon Exhaust Fan with Cone
FA-VFS-24S850
$945.00
Regular price
- Ships directly from manufacturer - departs in about 14 business days
This J&D Typhoon Exhause Fan with Cone is a dependable, yet economical ventilation solution for greenhouses, livestock buildings and other industrial and commercial settings. Steel slant wall housing with an energy efficient, totally enclosed motor. The motor has a 2 year warranty, everything else has a one year warranty for parts and workmanship. This fan includes a heavy gauge galvanized cone for increased performance.
Standard Features
- Spring loaded belt tightener on belt-drive fans.
- Efficient 3 or 4 blade galvanized prop.
- Balanced blade and pulley for smooth operation.
- Matched motor & belt ratio for maximum air, without overloading the motor.
- Motor has a Two year warranty.
- Cost-efficient heavy galvanized construction.
- Galvanized 4 way mount.
- Aluminum shutter has extruded frame with welded corners for added strength.
- 1" Stainless Steel Shaft.
- Eccentric Lock Collar Bearings.
- Slant wall housing improves airflow and allows condensation, rain, and snow to move away from the building
- Deep Cone to reduce back pressure and boost performance.
Dimensions
24", 30", 36", 42", and 50" fan sizes available (see chart below).
Fan Performance Specifications
Select desired fan model from drop down box at the top right of the page. Sizing information below.
| @0.10" | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model No. | Size | HP | Volts | Amps | Hz | Phase | Speed | CFM | CFM/Watt | RPM | Drive | Blade |
| VFS24CS | 24" | 1/2 | 115/230 | 4.56/2.28 | 60 | 1 | 1 | 4784 | 12.2 | 1712 | DD | 3-Alum |
| VFS30CS850 | 30" | 1/2 | 115/230 | 7.0/3.5 | 60 | 1 | 1 | 7161 | 13.3 | 825 | DD | 3-Alum |
| VFS36CD | 36" | 1/2 | 115/230 | 7.0/3.5 | 60 | 1 | 1 | 8391 | 16.2 | 825 | DD | 3-Galv |
| VFS36CS | 36" | 1/2 | 115/230 | 6.6/3.3 | 60 | 1 | 1 | 8926 | 13.5 | 548 | BD | 4-Galv |
| VFS36CS13 | 36" | 1 | 208-230/460 | 3.1-2.8/1.4 | 60 | 3 | 1 | 11855 | 11.8 | 741 | BD | 4-Galv |
| VFS36CS1 | 36" | 1 | 115/230 | 9.0/4.5 | 60 | 1 | 1 | 12995 | 12.7 | 650 | BD | 4-Galv |
| VFS42CS | 42" | 1 | 115/230 | 9.0/4.5 | 60 | 1 | 1 | 14950 | 14.4 | 575 | BD | 3-Galv |
| VFS50CS | 50" | 1 | 115/230 | 9.0/4.5 | 60 | 1 | 1 | 19785 | 18.6 | 588 | BD | 3-Galv |
| VFS50CS2 | 50" | 1 | 230 | 5.8/4.2 | 60 | 1 | 2** | 19103 6493 |
17.5 12.3 |
575 372 |
BD | 3-Galv |
| VFS50CS3 | 50" | 1 | 208-230/460 | 3.1-2.8/1.4 | 60 | 3 | 1 | 19481 | 18.7 | 579 | BD | 3-Galv |
| VFS50CSCA | 50" | 1 | 115/230 | 9.0/4.5 | 60 | 1 | 1 | 19674 | 17.5 | 584 | BD | 3-Galv |
| VFS503CSCA | 50" | 1 | 208-230/460 | 3.1-2.8/1.4 | 60 | 3 | 1 | 19397 | 18.8 | 575 | BD | 3-CA |
DD - Direct Drive, BD - Belt Drive, CA - Cast Aluminum
^ - Variable speed fans require separate variable speed control to adjust fan speed.
** - On 2 speed fans, the low CFM is 2/3 of the high CFM, separate speed control required.
Additional Information
Rough Openings for Greenhouses
| Fan Size | Rough Opening |
|---|---|
| 24" | 31" W x 31" H |
| 30" | 37" W x 37" H |
| 36" | 41" W x 41" H |
| 42" | 49" W x 49" H |
| 50" | 55" W x 55" H |
Note: Heights may vary as your wall gets thicker like a cinder block wall
Manual
J&D Typhoon Exhaust Fan with Cone
How do I size my fan and shutters system?
1. The first thing that you need to determine is the amount of air required. This is stated in CFM (Cubic Feet of Air per Minute).
2. Use the following formula to determine the CFM required for your greenhouse:
CFM = Length x Width x Height
Example: Greenhouse 12' wide x 24' long x 12' high requires 3456 CFM (12 x 24 x 12 = 3456)
3. Reference the above table. Select the appropriate combination of fan(s) to achieve the necessary CFM rating. Be sure to match the total CFM output for your exhaust fan(s) to the CFM ratings for your Inlet Shutters.
Click here to view fan installation detail
