Caterpillar Hoop House Kit

Do you have a large garden, for pleasure or for profit, that needs low-cost covered growing space to protect your sensitive crops from the cold and elements? Then look no further than these specially designed Caterpillar Hoop Houses from Greenhouse Megastore! The Caterpillar Hoop House Kit is the most affordable way to achieve temporary covered growing space. They offer protection from heavy rain, cold, wind and more to extend the growing season.

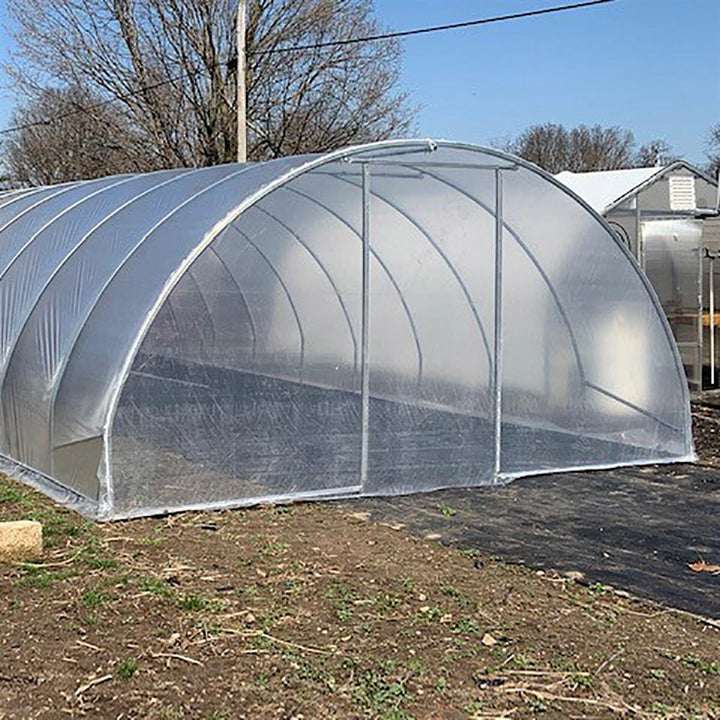

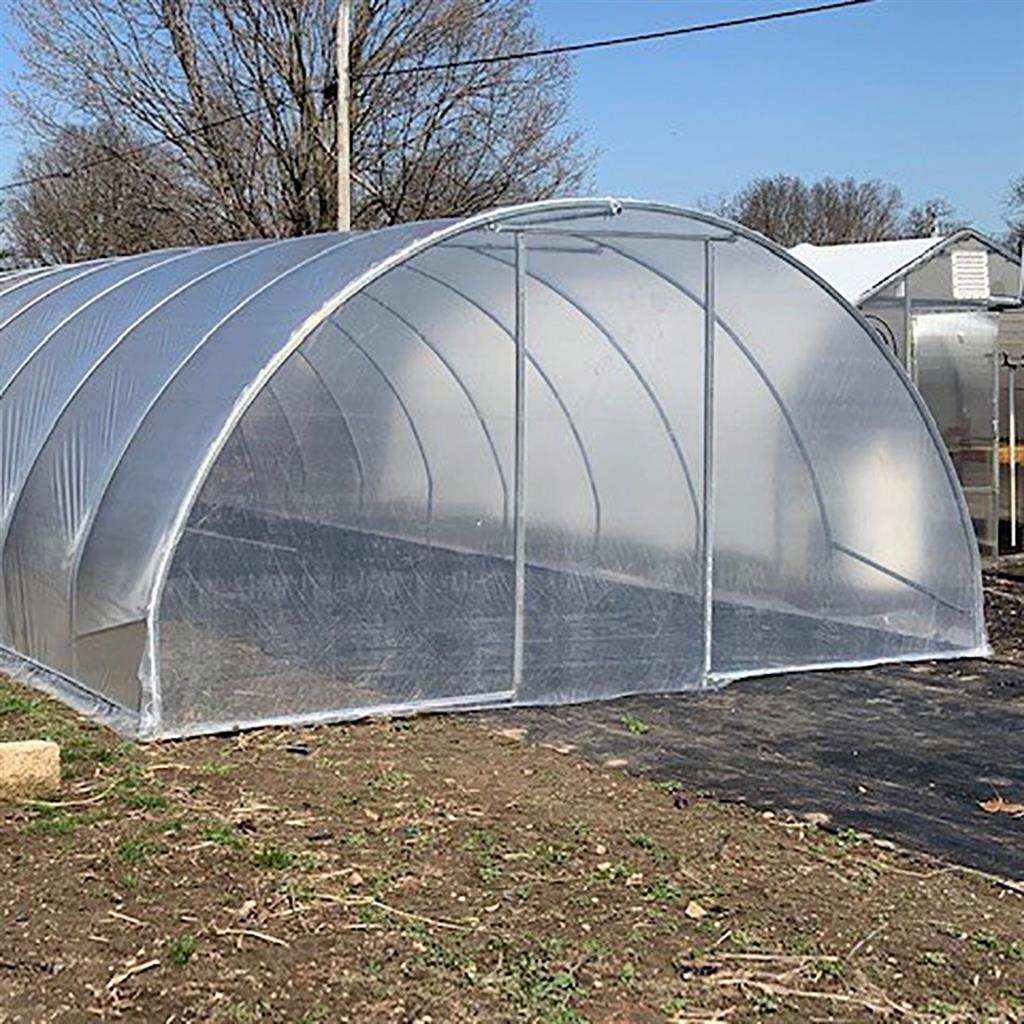

Caterpillar greenhouse hoop houses are simple tubular steel structures that fix in place with simple ground anchors - no digging or drilling required. They can be taken down, moved and reused from season to season. Featuring steel hoops spaced four feet apart with a simple ridge purlin holding it all together, these caterpillar hoop houses for plants can be covered in plastic to protect crops in the spring and fall. Or cover them in shade cloth to protect heat-sensitive crops like lettuce and spinach during the heat of summer.

Similar to our Low Tunnel Kits only much larger, Caterpillar Hoop House Kits are the easiest, least expensive way to get growing footage under cover. They're available in a 16-foot width and two lengths - 24 feet or 48 feet - with 6 mil poly film and all hardware you need. Hoop Houses can be connected for a longer greenhouse run, and if you'd like to order custom caterpillar hoop houses, call us or complete the request form. You won't regret your investment in this incredibly-priced growing space! Greenhouse Megastore guarantees the lowest price on commercial-quality plant structures. Follow the installation instructions below or let our sales team arrange for professional setup.

Caterpillar Hoop House Greenhouse Kit Features:

• Ground-anchored structure
• Can be used for temporary seasonal growing or year-round cover
• Expandable up to 300 feet or longer
• Sold in 24-foot and 48-foot lengths

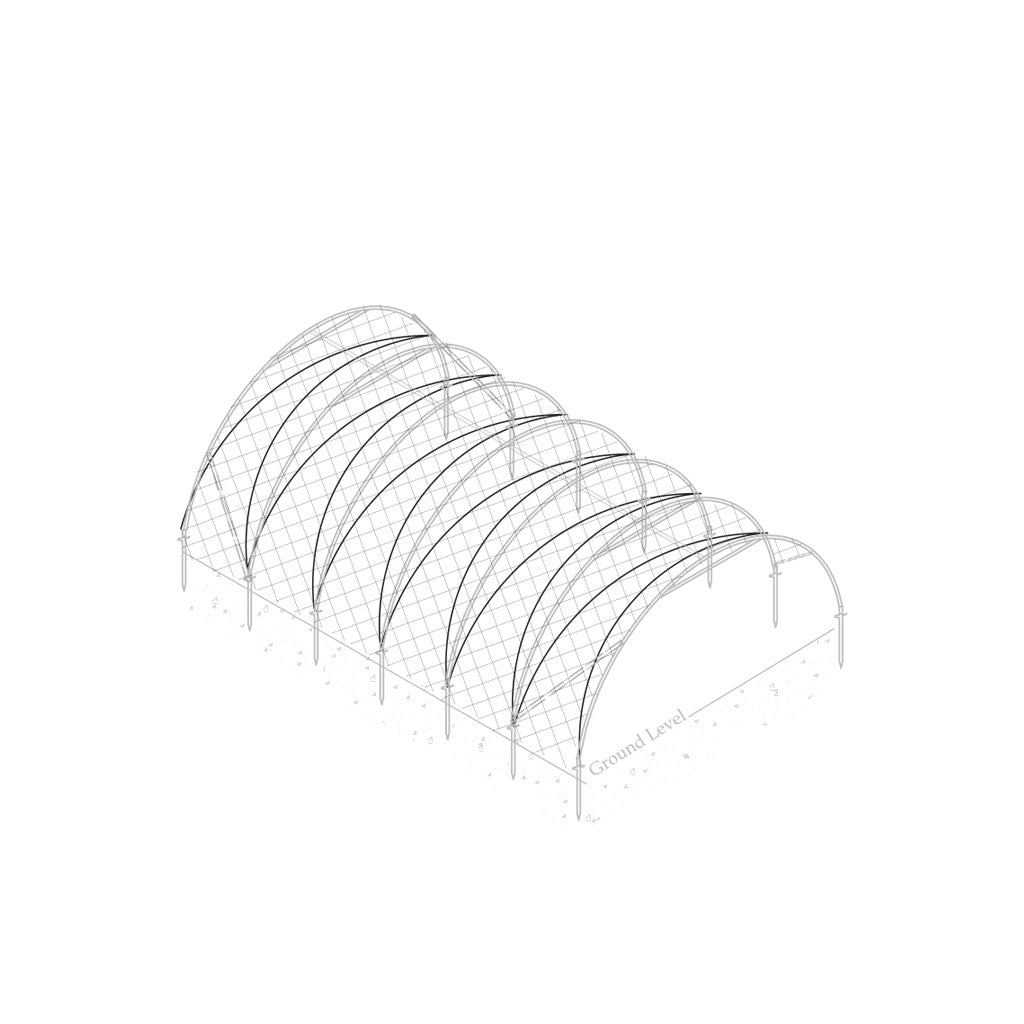

Included in the 16' x 24' Caterpillar Hoop House Kit:

• (14) 36" Ground Anchors
• (7) Caterpillar Hoops (Left Leg) - 16 gauge, 33mm H.D. galvanized
• (7) Caterpillar Hoops (Right Leg) - 16 gauge, 33mm H.D. galvanized
• (3) Swagged Tubes - 8', 33mm, hot dipped for caterpillar hoop house

• (7) Purlin Connector U-Bolt Straps and 2 nuts
• (8) Parallel Tubes for Corner Support/Brace - 5', 33mm, galvanized with hole on each end
• (50) 4" ABS Cuffs for 33mm tube
• (16) 1-Bolt Strap Clamp, 33mm
• (50) 12 x 3/4 SDS Screw
• (11) 31.82' of Green Rope
• (1) 32' x 55' Standard Clear Greenhouse Film, 6 mil
• (2) End Wall Kits - Each kit consists of:
• (2) 6' Hoop Tubes, 33mm HD Galvanized
• (2) 7' Hoop Tubes, 33mm HD Galvanized
• (6) Straight Bolt Clamps, two-part
• (30) 4" ABS Cuffs for 33mm tube
• (2) 36" Ground Anchors

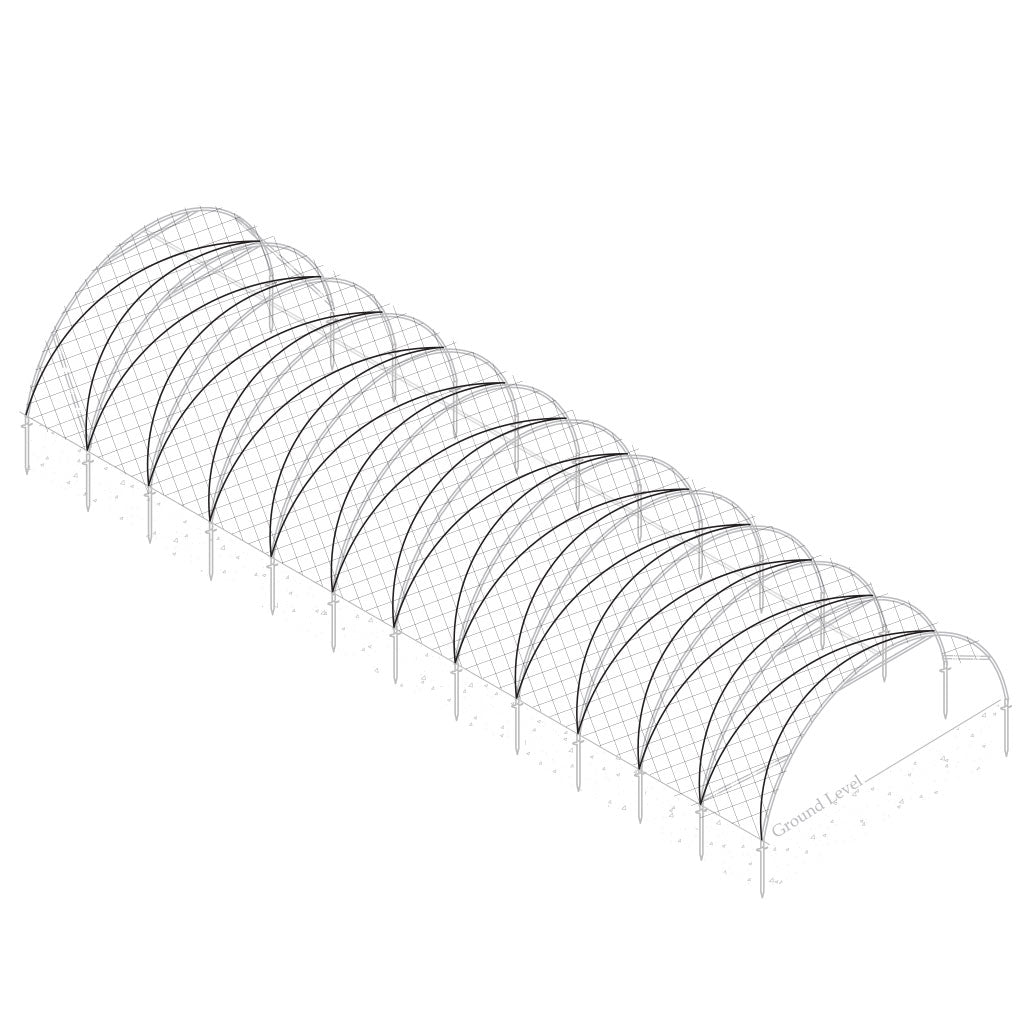

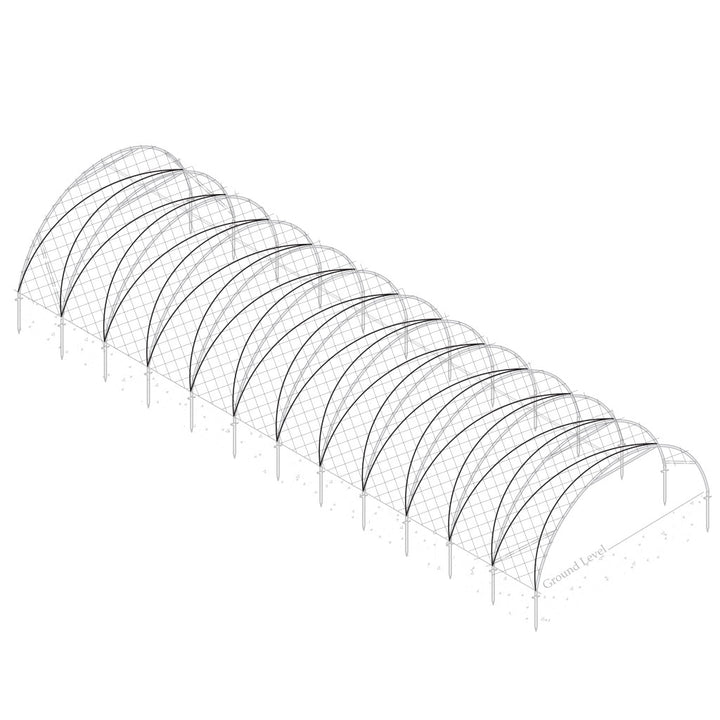

Included in the 16' x 48' Caterpillar Hoop House Kit:

• (26) 36" Ground Anchors
• (13) Caterpillar Hoops (Left Leg) - 16 gauge, 33mm H.D. galvanized
• (13) Caterpillar Hoops (Right Leg) - 16 gauge, 33mm H.D. galvanized
• (6) Swagged Tubes - 8', 33mm, hot dipped for caterpillar hoop house

• (13) Purlin Connector U Bolt Strap and 2 nuts
• (8) Parallel Tubes for Corner Support/Brace - 5', 33mm, galvanized with hole on each end
• (100) 4" ABS Cuffs for 33mm tube
• (16) 1-Bolt Strap Clamp, 33mm
• (100) 12 X 3/4 SDS Screws
• (22) 31.82' of Green Rope
• (1) 32' x 75' Standard Clear Greenhouse Film, 6 mil
• (2) End Wall Kits - Each kit consists of:
• (2) 6' Hoop Tube, 33mm HD Galvanized
• (2) 7' Hoop Tube, 33mm HD Galvanized
• (6) Straight Bolt Clamp, two-part
• (30) 4" ABS Cuffs for 33mm tube
• (2) 36" Ground Anchors

Additional Information

Caterpillar Hoop House 16' x 24' Installation Instructions (PDF)

Caterpillar Hoop House 16' x 48' Installation Instructions (PDF)
