Modine Vertical Electric Heater 15 KW
$2,649.73 Regular price
- Ships directly from manufacturer - departs in about 6 weeks
- Inventory on the way

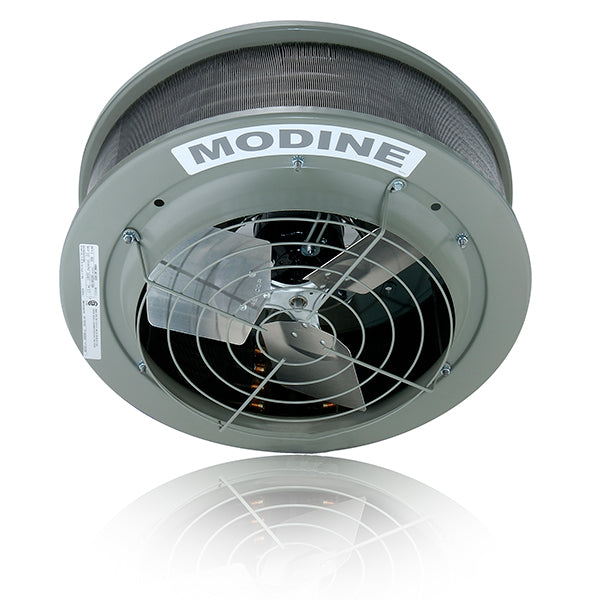

Model VE Vertical Delivery Heaters: These units are generally installed in areas where ceilings are high and where obstructions do not permit good horizontal movement of air. Vertical units heaters should be oriented so that the heat spread from one overlaps the heat spread of another unit heater.
Low Installation Cost
Terminal blocks are supplied to facilitate connection of power supply and control wiring. Heaters are lightweight and usually require no special reinforcement to suspend them. Easy to install - just hang the heater, connect to power supply, controls and thermostat and it is ready to operate.
Heating elements are resistant to thermal shock and vibration for a long, trouble-free life.
Equipped with adjustable horizontally positioned air deflector blades (HER units) to allow complete control over the air discharged by the unit.
Fans are accurately balanced to move air quietly. Motors mounted to fan guards utilize rubber vibration absorbing material for quieter operation.
Motors are totally enclosed, permanently lubricated, and thermally protected. Electrical contactors, fuses and transformers are all safety enclosed in control compartments.
Easy to Service
Fan and motor are exposed for easy removal without lowering the unit heater. Hinged bottom panel permits full access to controls.
Dimensions, Diagrams, and Specifications (PDF)
Modine Greenhouse Heating Solutions (PDF)
Select desired heater from the drop-down list at the top right of the page. Performance information below.
|Item NO.||KW||BTUH||Heat Throw||Electrical Data
|VE50 Vertical||5.0||17,100||20' spread||208v 1 phase / 24.5 amps
240v 1 phase / 21.3 amps
208v 3 phase / 14.3 amps
240v 3 phase / 12.5 amps
480v 3 phase / 6.5 amps
|VE75 Vertical||7.5||25,600||17' spread||208v 1 phase / 36.5 amps
240v 1 phase / 31.7 amps
208v 3 phase / 21.3 amps
240v 3 phase / 18.5 amps
480v 3 phase / 9.5 amps
|VE100 Vertical||10.0||34,100||18' spread||208v 1 phase / 49.4 amps
240v 1 phase / 42.9 amps
208v 3 phase / 29.0 amps
240v 3 phase / 25.3 amps
480v 3 phase / 13.3 amps
|VE150 Vertical||15.0||51,200||26' spread||208v 3 phase / 42.9 amps
240v 3 phase / 37.4 amps
480v 3 phase / 19.3 amps
|VE200 Vertical||20.0||68,300||30' spread||208v 3 phase / 56.8 amps
240v 3 phase / 49.4 amps
480v 3 phase / 25.3 amps
|VE250 Vertical||25.0||85,400||26' spread||208v 3 phase / 70.7 amps
240v 3 phase / 61.4 amps
480v 3 phase / 31.4 amps
|VE300 Vertical||30.0||102,222||31' spread||480v 3 phase / 37.6 amps||122|
|VE400 Vertical||40.0||137,000||27' spread||480v 3 phase / 49.6 amps||125|
|VE500 Vertical||50.0||171,000||24' spread||480v 3 phase / 61.5 amps||129|
It is the customer's responsibility to carefully inspect heaters for damage before accepting delivery since heaters are usually not returnable once delivery is accepted. Obviously damaged heaters should be refused and Greenhouse Megastore customer service contacted to make arrangements for a replacement unit. Once delivery is accepted Greenhouse Megastore will gladly provide replacement parts under the manufacturer's warranty to repair damaged or defective heaters; however this warranty does not include any labor costs associated with installing these parts. Warranty issues should be diagnosed by a certified HVAC technician since parts deemed not to be defective by the manufacturer are not available for credit back to the customer. Specific warranty policies vary by manufacturer but typically cover replacement parts as indicated above up to one year after purchase. Please contact Greenhouse Megastore customer service if you have any questions about the warranty for your specific heater.
This item ships free via Motor Freight Carrier - almost anywhere in the Continental United States!
On rare occasions addresses with limited access such as islands or major metropolitan areas (ie: New York City) may incur additional delivery fees; if so, you will be contacted to confirm the extra shipping cost before your order is processed. Shipments to Alaska or Hawaii qualify for free shipping to any West Coast port. Please contact us for special shipping rates from the West Coast to Alaska or Hawaii.
