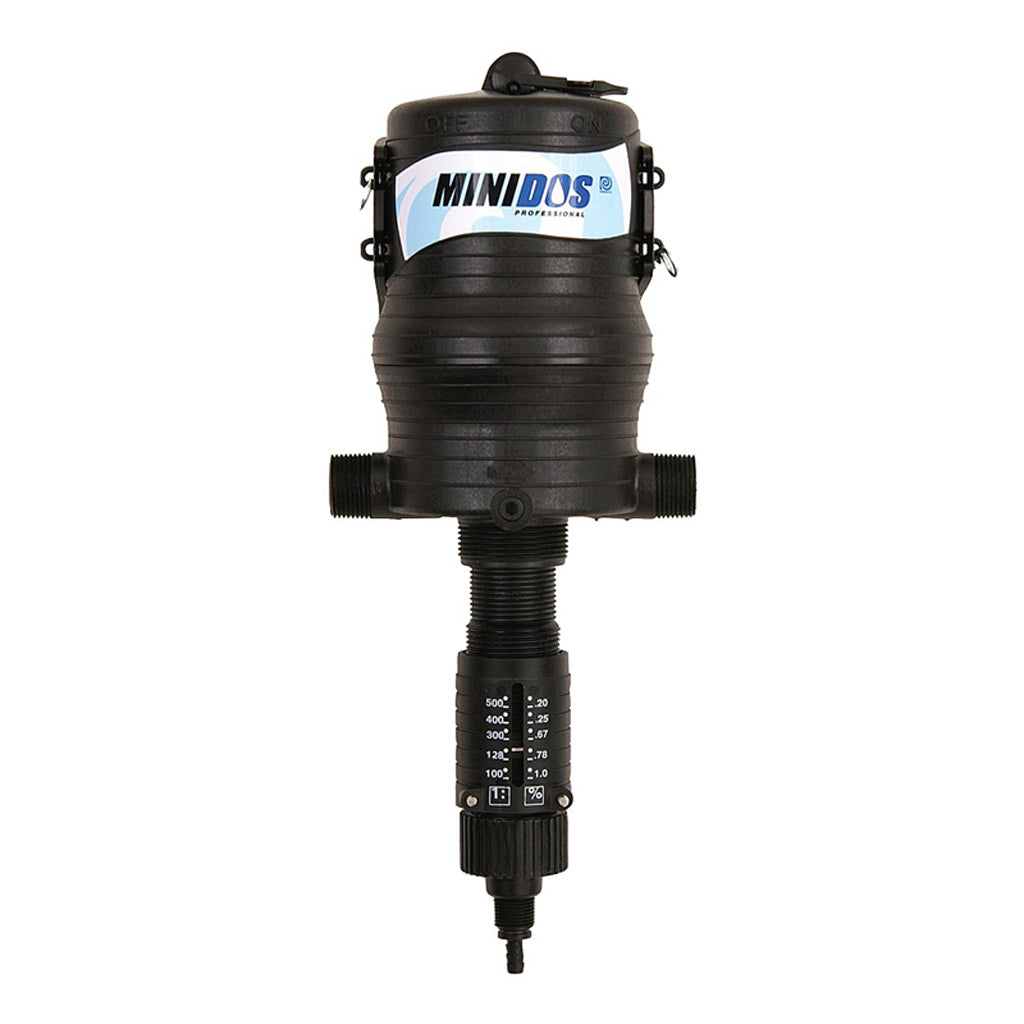

Perfect for smaller greenhouses or hobby growers, the MiniDos provides accurate, reliable injection of fertilizer or chemicals at flow rates as low as .03 GPM. Water-driven operation eliminates the need for electricity and allows for easy, cost effective operation.
|Model||Flow Rate - Min.||Flow Rate - Max.||Feed Ratio - Min.||Feed Ratio - Max.||Operating Pressure||Inlet/Outlet Pipe Connection|
|MiniDos 1%||0.03 gpm||12 gpm||0.20%||1.00%||6.0 -100 psi||3/4" npt|
|0,11 lpm||45 lpm||1:500||1:100||0,41 - 6,9 bar||3/4" bsp|
|MiniDos 2.5%||0.03 gpm||12 gpm||0.50%||3.50%||6.0 -100 psi||3/4" npt|
|0,11 lpm||45 lpm||1:200||1:40||0,41 - 6,9 bar||3/4" bsp|
|MiniDos 5%||0.03 gpm||12 gpm||1.00%||5.00%||6.0 -100 psi||3/4" npt|
|0,11 lpm||45 lpm||1:100||1:20||0,41 - 6,9 bar||3/4" bsp|
|MiniDos 10%||0.07 gpm||12 gpm||2.0%||10.0%||6.0 -100 psi||3/4" npt|
|0,25 lpm||45 lpm||1:50||1:10||0,41 - 6,9 bar||3/4" bsp|
MiniDos Manual (PDF)
Recommended Installation (JPG)
